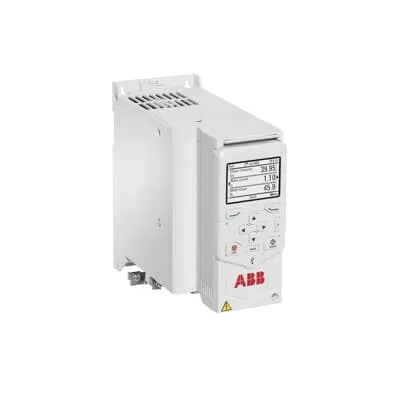

ABB ACH480-04-09A8-1 LV AC drive - HVAC 2.2 kW
Part Number: 3AXD50000352449
Quick Summary
ABB ACH480-04-09A8-1 LV AC drive manages HVAC fans and pumps for reliable climate control. Commissioning delays and complex set-up slow projects in HVAC panels. CE marking, IP-rated configurations, and safety-compliant design are common in ABB HVAC drives, with SIL-ready options depending on variant. This cabinet-optimized HVAC control enables faster installation and predictable performance, delivering value to OEMs, panel builders, and service teams. By standardizing on this drive, contractors can reduce commissioning time, improve maintenance visibility, and meet energy targets across multiple sites.
Product Information
Extended Description
3AXD50000352449 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: Cabinet-optimized architecture reduces panel wiring and space requirements. Business impact: Faster installation, lower labor costs, and reduced risk of mis-wiring. Application: Ideal for HVAC control panels in commercial buildings and data centers. Feature: HVAC-focused control functions for fans, pumps, and compressors ensure precise operation. Business impact: Improved energy efficiency and smoother climate control, helping facilities meet regulatory targets. Application: Air handling units and rooftop units across mid-sized commercial systems. Feature: Intuitive control panel with HVAC primary settings menu and help assistants. Business impact: Shorter startup times and fewer programming errors. Application: Field deployments by technicians with varying experience. Feature: Optional Bluetooth capability enables commissioning and monitoring from distance. Business impact: Remote diagnostics, reduced site visits, and faster fault isolation. Application: OEMs deploying multi-zone systems and service teams supporting remote sites. Feature: 2.2 kW, 200 V IEC-compatible rating. Business impact: Standardized platform across mid-range HVAC equipment, simplifying procurement and spare parts. Application: OEMs and panel builders standardizing on ABB drives. Feature: Broad compatibility with ABB ecosystem and straightforward installation. Business impact: Lower lifecycle costs and easier maintenance. Application: Integrations with existing ABB drives, sensors, and controllers in new builds or retrofits.
Get a Quick Quote for a ABB 3AXD50000352449
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000352449?
Enquire Now
FAQs
Install the drive in a suitable cabinet sized for the 2.2 kW rating, wire according to IEC practices, and utilize the HVAC-specific primary settings menu to configure fans, pumps, or compressors. Enable Bluetooth if remote commissioning is required, and verify wiring protection and safe de-energization during setup.
Power rating is 2.2 kW, current 9.8 A, and supply voltage 200 V. Optional Bluetooth enables remote commissioning and monitoring. Applications include HVAC fans, pumps, and compressors in air handling units and panels.
Yes. The cabinet-optimized ACH480-04-09A8-1 is designed for HVAC applications such as air handling units and OEM equipment, offering HVAC-specific control menus and simplified commissioning to support multiple zones and equipment types.
Typical ABB HVAC drives feature CE marking for Europe and IP-rated enclosure options for harsh environments. Verify the exact variant of ACH480-04-09A8-1 with the supplier to confirm additional safety certifications and regional compliance.
Benefits include faster installation, reduced energy consumption through optimized motor control, and remote monitoring to shorten service visits. The Bluetooth-enabled option supports proactive maintenance, improving uptime and overall return on investment for panel builders and end users.
