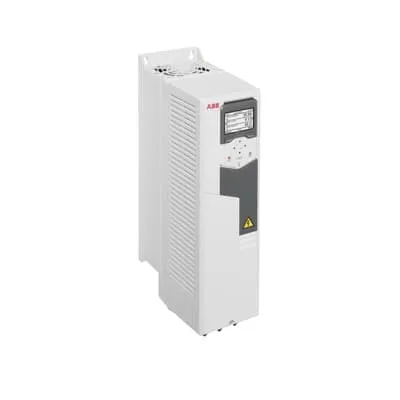

ABB ACS580-01-025A-2 Wall-mounted Drive - IP21
Part Number: 3AXD50000417391
Quick Summary
ACS580-01-025A-2 is a general purpose LV AC wall-mounted drive for compressors and conveyors. Users often confront lengthy commissioning and complex hardware integrations, but this model is plug-in ready with built-in setup assistants to speed configuration. It features IP21 protection as standard, with IP55 variants available for harsher environments, reinforcing reliability in light industrial settings. By combining compact form with straightforward menus, it delivers faster setup, simpler maintenance, and consistent motor control, providing clear business value through reduced downtime and predictable performance for pumps, fans, and other variable torque loads.
Product Information
Extended Description
3AXD50000417391 ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Feature: Plug-in ready deployment and built-in setup assistants. Business impact: Accelerates commissioning, reduces need for external hardware, and minimizes startup risk. Application: New lines and retrofits in food & beverage, plastics, and packaging where fast deployment matters. Feature: IP21 standard enclosure with IP55 options. Business impact: Enhanced protection in clean, moderate environments and capability to operate in tougher spaces without enclosure changes. Application: Conveyors and mixers in light manufacturing. Feature: 5.5 kW power at 230 V with 24.5 A current. Business impact: Tight footprint with high torque availability enables smaller installations and energy-efficient operation. Application: Pumps, fans, and small extruders demanding reliable motor control. Feature: Built-in settings menu and operational assistants. Business impact: Reduces engineering hours, simplifies maintenance, and enables rapid troubleshooting. Application: OEM projects and retrofit programs across process lines. Feature: Robust, rugged design with minimal external hardware requirements. Business impact: Lower total installed cost and easier field service, increasing uptime. Application: Any light-industrial environment needing dependable drive control.
Get a Quick Quote for a ABB 3AXD50000417391
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417391?
Enquire Now
FAQs
The ACS580-01-025A-2 is designed as a wall-mounted drive with an IP21 standard enclosure; IP55 variants and flange mounting are available for different installation constraints. It operates from a 230 V supply and connects to standard three-phase motor circuits, offering plug-in readiness to streamline wiring, reduce cabinet space, and simplify field wiring during retrofits.
With a rated 5.5 kW output at 230 V and a nominal current around 24.5 A, the ACS580-01-025A-2 provides strong torque for pumps, conveyors, and fans while enabling smooth acceleration and deceleration. Energy efficiency gains come from built-in control strategies and soft-start behavior, which reduce peak current and mechanical wear, contributing to lower energy bills and longer motor life.
Yes. The drive is purpose-built for light-industrial torque applications, including pumps, conveyors, extruders, centrifuges, mixers, and fans. Its plug-in readiness, intuitive setup, and robust enclosure options make it ideal for retrofit projects and new lines where reliable motor control and quick commissioning are priorities.
Key considerations include the standard IP21 protection with IP55 options for tougher environments, and compatibility with ABB’s ACS580 family for consistent software and hardware integration. While IP ratings address environmental protection, consider regional safety standards and EMC requirements relevant to your plant layout and controls architecture.
ROI benefits come from reduced commissioning time, fewer external components, and lower downtime due to built-in setup assistants and robust design. Maintenance is streamlined by the drive’s integrated features and compatibility with common industrial controls, minimizing spare parts and enabling faster fault diagnosis and service in daily operations.
