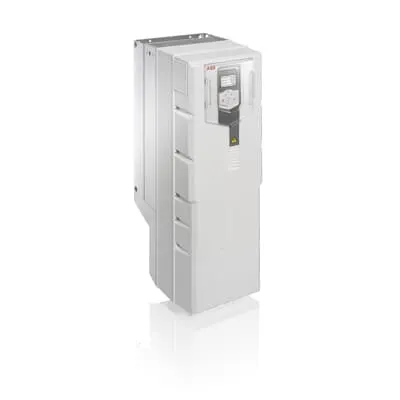

ABB 3AXD50000417612 ACS580-01 Wall-Mounted Drive - IP21
Part Number: 3AXD50000417612
Quick Summary
The ACS580-01 wall-mounted drive provides reliable LV AC motor control for compressors, conveyors, and pumps. Engineers often contend with long setup times and complex diagnostics; this drive simplifies configuration with built-in features and an intuitive setup menu. It ships in a standard IP21 enclosure, with IP55 and flange-mount options to suit harsh environments and differing installation needs. By consolidating essential motor-control functions into a single compact drive, you can reduce downtime, streamline maintenance, and lower total cost of ownership across food, plastic, textile, and agricultural operations.
Product Information
Extended Description
3AXD50000417612 ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
The ACS580-01 is a plug-in ready solution that accelerates installation, enabling fast commissioning for critical line starts and stop cycles in compressors, conveyors, and pumps. Built-in essential features eliminate the need for extra hardware, reducing upfront capital expenditure while simplifying spare-part inventories and maintenance routines. Its IP21 standard enclosure, with IP55 and flange-mount options, supports reliable operation across clean rooms, dusty facilities, and rugged plant floors, improving uptime and safety. Rated at Pn 45 kW, 171 A, and 230 V, it delivers robust torque control for constant and variable torque applications, enabling precise process regulation and energy efficiency. Industry-ready integration with ABB tooling and support ensures predictable performance and faster troubleshooting in plastics, textiles, and material handling. The drive’s compact footprint and plug-and-play wiring minimize panel space and wiring complexity, cutting installation time by days in large-scale projects.
Get a Quick Quote for a ABB 3AXD50000417612
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417612?
Enquire Now
FAQs
Install the drive in the standard IP21 enclosure with proper clearance for cooling and access to the wiring terminals. Connect the 230 V supply and motor leads according to ABB wiring diagrams, ensuring correct motor orientation and protective earth. Use the built-in setup assistants to configure basic motor control parameters and verify software versions before commissioning.
The unit is specified for Pn 45 kW, 171 A at 230 V, making it suitable for mid-size motors in conveyors, pumps, and compressors. Validate motor nameplate data against the drive’s torque, current, and voltage limits, and ensure compatible feedback devices and motor protection settings to optimize performance.
Yes. The drive offers a standard IP21 enclosure with optional IP55 and flange-mount configurations, enabling installation in less controlled environments. Its rugged design and integrated features reduce external hardware, aiding reliability in continuous-duty applications such as compressors and conveyors while simplifying maintenance schedules.
The standard enclosure is IP21, suitable for many indoor factory spaces. IP55 options and flange-mount variants are available to enhance ingress protection and mounting flexibility in more demanding zones. Choose the option that aligns with your facility’s dust, splash, and space constraints to maximize reliability.
Built-in diagnostics, fast setup assistants, and reduced hardware needs translate to shorter commissioning times and lower spare-parts costs. The robust construction minimizes downtime, while precise motor control improves energy efficiency and process stability, delivering measurable ROI over the drive’s operational life in mixed-industry environments.
