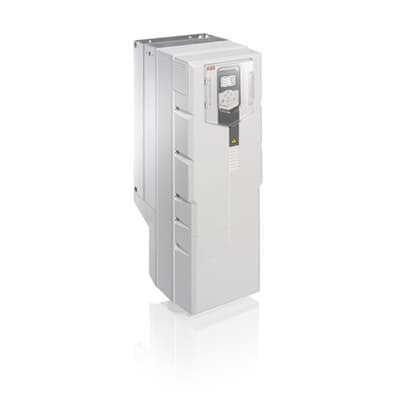

ABB 3AXD50000417636 LV AC Drive ACS580-01-276A-2+B056
Part Number: 3AXD50000417636
Quick Summary
ABB 3AXD50000417636 LV AC Drive controls pumps and conveyors for general purpose applications. Engineers often contend with lengthy setup and maintenance that drive downtime and escalate costs; this drive delivers fast commissioning through built-in wizards and intuitive diagnostics. Key ratings include IP21 standard enclosures with IP55 option for tougher environments, plus rugged construction that supports reliable operation in light industrial sectors. Together with compact installation, straightforward commissioning, and built-in protection features, it helps shorten project timelines while reducing total cost of ownership across manufacturing lines. This combination also supports scalable automation strategies in sectors like food & beverage, plastics, and material handling.
Product Information
Extended Description
3AXD50000417636 ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Feature: Plug-in ready wall-mounted drive with built-in setup assistants. Business Impact: Reduces commissioning time and minimizes on-site engineering effort, cutting startup costs. Application: Suitable for pumps, fans, conveyors and compressors in light-industrial lines. Feature: 75 kW, 276 A at 230 V capability. Business Impact: Handles demanding torque and power requirements with reliable control, enabling deeper process stability. Application: High-load applications like compressors and extruders. Feature: IP21 standard enclosure with IP55 option. Business Impact: Provides environmental protection and installation flexibility in production areas, lowering enclosure-related risk. Application: Wall-mounted installations in manufacturing plants. Feature: Rugged, robust design with integrated diagnostics. Business Impact: Lowers maintenance costs through predictive alerts and quick fault isolation. Application: OEMs upgrading automation lines in food & beverage, plastics and material handling. Feature: Intuitive settings menu and assistants. Business Impact: Accelerates training and reduces configuration errors, improving uptime. Application: Commissioning across multi-line operations.
Get a Quick Quote for a ABB 3AXD50000417636
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417636?
Enquire Now
FAQs
This wall-mounted drive is designed for plug-in readiness with straightforward wiring and minimal hardware. Ensure a clean, vibration-minimized panel space, proper clearance for ventilation, and secure mounting to support the weight and heat dissipation. Use IP21 protection as standard, with IP55 or flange mount options where higher environmental protection is required. Verify leverages in your control system and ensure compatible field devices are configured for 230 V operation and 276 A current draw.
For a 75 kW load, confirm 276 A current at 230 V and confirm the ACS580-01-276A-2+B056 variant is selected. Check motor compatibility with 230 V supply, ensure proper cable sizing, and validate the drive’s torque control in tachometer feedback scenarios. Review built-in protection settings for overcurrent, short circuits, and overload durations to maintain steady performance during startups and steady-state operation.
Yes, the ACS580-01-based drive is suitable for light-industrial environments such as food & beverage and plastics. Its IP21 enclosure can be upgraded to IP55, offering protection against dust and splashes in production spaces. The built-in diagnostics, simple setup flow, and robust protection features help maintain hygiene standards, reduce maintenance, and support compliant, stable process control in these sectors.
The drive ships with an IP21 enclosure as standard, with IP55 and flange mounting options available to suit harsher environments. These IP ratings provide essential enclosure protection for light-industrial settings. The ACS580 family is designed to meet common industrial standards and safety practices, supporting reliable operation in conveyors, pumps, and other automated line equipment.
Expect reduced downtime from built-in diagnostics, predictive alerts, and a straightforward setup that minimizes commissioning time. Energy efficiency improvements stem from precise v/f control and torque management, lowering energy waste on fans and pumps. The robust protection and modular mounting options also reduce maintenance costs and enable easier upgrades or expansions of automation lines.
