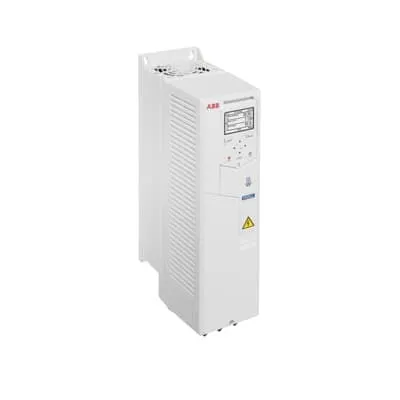

ABB 3AXD50000417698 HVAC Drive - IP21/IP55 Ready
Part Number: 3AXD50000417698
Quick Summary
ABB 3AXD50000417698 HVAC drive enables efficient control of fans, pumps and compressors in HVAC systems. Engineers face lengthy commissioning and unpredictable performance in mission-critical applications, which this drive helps address. Built-in HVAC features and an intuitive primary settings menu shorten startup time, while optional Bluetooth enables remote commissioning and monitoring. The ACH580-01 comes in a standard IP21 enclosure, with IP55 and flange-mount options for tougher environments. This design aligns with IEC HVAC control practices to ensure reliable operation, even under demanding conditions. The result is energy-efficient HVAC performance with easier integration, reducing downtime and lowering total cost of ownership for AHUs, fans, pumps and chillers.
Product Information
Extended Description
3AXD50000417698 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC-specific control for fans, pumps and compressors. Business Impact: Enables precise sequencing and reduced energy consumption by applying validated control logic across typical HVAC loads. Application: Ideal for air-handling units, rooftop units, and chillers where reliable start-up and stable duty cycles matter. Feature: IP21 standard enclosure with IP55 and flange-mount options. Business Impact: Delivers installation flexibility and protection in varied plant environments, minimizing cabinet changes and retrofits. Application: Wall-mounted installations in mechanical rooms or corridor spaces where enclosure choice affects serviceability. Feature: Bluetooth capability for commissioning and monitoring. Business Impact: Supports distance setup, reduces on-site visits, and enables remote diagnostics for faster fault resolution. Application: Commissioning across multiple HVAC units and remote facilities. Feature: Intuitive HVAC primary settings menu with help assistants. Business Impact: Shortens operator training and reduces startup errors, improving first-time fix rates. Application: Service technicians configuring AHUs and variable-air-volume systems. Feature: 5.5 kW, 24.5 A, 230 V electrical specification. Business Impact: Provides adequate motor drive strength for common HVAC equipment with efficient performance and predictable torque. Application: Drives for fans, pumps and compressors in HVAC systems. Feature: Compatibility with ACH580 family and straightforward integration with sensors and controllers. Business Impact: Streamlines procurement, reduces wiring complexity, and simplifies lifecycle management. Application: Retrofit projects and new installations in plant rooms, AHUs, and energy-efficient HVAC networks.
Get a Quick Quote for a ABB 3AXD50000417698
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417698?
Enquire Now
FAQs
The ACH580-based drive is designed for LV AC power and wall mounting, supporting 230 V supplies up to 5.5 kW. It integrates with typical HVAC controls and sensors, reducing wiring changes and enabling seamless retrofit or new-install integration.
Expect smoother starts, improved fan/pump control, and energy savings through built-in HVAC algorithms. Key specs are 5.5 kW, 24.5 A, 230 V, with options for IP21/IP55 enclosures and Bluetooth for remote diagnostics.
Best for air handling units, chillers, rooftop units and other HVAC equipment requiring reliable speed control and energy efficiency in fans, pumps, and compressors.
The unit features HVAC-specific IP ratings (IP21 standard, IP55 option) suitable for wall-mounted installations in controlled environments; IEC-aligned design supports compliant operation in HVAC control scenarios.
Faster commissioning reduces labor costs, uptime improvements lower downtime penalties, and remote Bluetooth monitoring minimizes on-site maintenance visits, delivering a favorable total cost of ownership over the system lifecycle.
