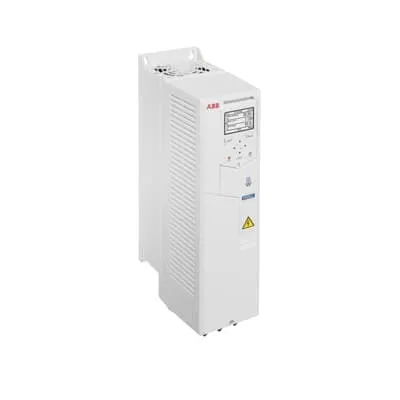

ABB 3AXD50000417704 ACH580 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000417704
Quick Summary
ACH580 HVAC drive is a LV AC wall-mounted controller designed to run fans, pumps and compressors in commercial and industrial HVAC systems. Engineers often face lengthy commissioning and setup when integrating multiple components, leading to delays and higher costs. This model features IP21 standard enclosure with IP55 and flange options, plus optional Bluetooth for remote commissioning and monitoring. In normal and mission-critical operation, built-in HVAC-specific settings and intuitive control panel streamline startup, commissioning and ongoing operation. With a 7.5 kW rating at 230 V and a compact form factor, it delivers energy-efficient control while reducing installation time and total cost of ownership.
Product Information
Extended Description
3AXD50000417704 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature to benefit mapping begins with built-in HVAC control for fans, pumps and compressors, delivering a measurable reduction in energy use and improved system stability. This directly translates to lower operating costs and shorter commissioning cycles for air-handling units and chillers. Application-wise, the ACH580 is well-suited for HVAC installations where space is constrained and rapid startup matters, such as rooftop units and data-center cooling loops. Another key feature is the HVAC-specific primary settings menu with help assistants, which accelerates startup and minimizes configuration errors, resulting in faster project turnover and lower risk of misconfiguration. The optional Bluetooth capability enables commissioning and monitoring from a distance, reducing service visits and enabling proactive maintenance. IP21 enclosure is standard for wall mounting, with IP55 and flange mounting options available for harsher environments, expanding compatibility across plant layouts. Compatibility with 230 V networks and a 7.5 kW rating supports a wide range of mechanical systems while maintaining compliance with electrical standards and ongoing maintenance practices. This drive also supports smooth, energy-efficient operation, helping facilities meet sustainability targets and reduce total cost of ownership over the equipment's life cycle.
Get a Quick Quote for a ABB 3AXD50000417704
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417704?
Enquire Now
FAQs
The ACH580 HVAC Drive is designed for 230 V control networks and supports a 7.5 kW rating at 230 V with a current of 31.2 A. It is a wall-mounted, low-voltage AC drive optimized for HVAC components, making it a direct fit for fans, pumps and compressors in typical air handling and conditioning applications.
Key specifications include 7.5 kW power rating, 230 V supply, 31.2 A current, and an IP21 enclosure standard with IP55 optional. It is engineered for HVAC control of fans, pumps and compressors, and provides HVAC-specific settings to simplify configuration and improve energy efficiency.
Yes. The ACH580 is purpose-built for HVAC systems such as air-handling units, chillers and pumps. Its built-in HVAC control features, intuitive settings menu and remote commissioning options make it suitable for both new installations and retrofits in commercial and industrial buildings.
The standard enclosure is IP21 for wall mounting. IP55 and flange mounting units are available as options to accommodate more demanding environments and installation constraints, enhancing installation flexibility across plant layouts.
Built-in HVAC features reduce commissioning time and simplify maintenance, while optional Bluetooth enables remote commissioning and monitoring, lowering service visits. Energy-efficient operation lowers running costs, and the compact form factor supports easier retrofits, contributing to a faster return on investment.
