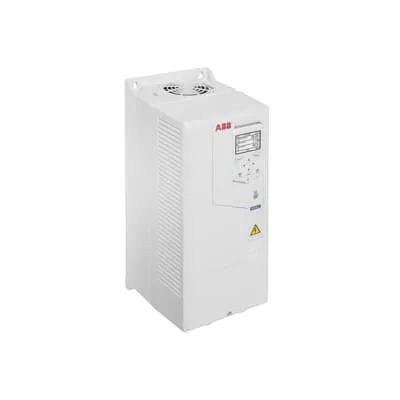

ABB ACH580-01-060A-2 HVAC Drive - Enclosure IP21
Part Number: 3AXD50000417728
Quick Summary
ABB ACH580-01-060A-2 HVAC drive is a wall-mounted LV AC drive designed to control fans, pumps and compressors in HVAC systems. Installers often grapple with lengthy commissioning and complex parameter setups, but this drive reduces installation time through built-in HVAC-specific menus and an intuitive control panel. It provides robust protection with an IP21 enclosure as standard, while IP55 and flange mounting options offer installation flexibility. Bluetooth capability enables remote commissioning and monitoring, helping maintain operations across facilities. Together, these features translate to energy-efficient operation, faster startup, and lower total cost of ownership for HVAC applications.
Product Information
Extended Description
3AXD50000417728 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC control capabilities that manage fans, pumps, and compressors streamline system operation and improve energy efficiency, particularly in air-handling units and chillers. This reduces energy consumption and maintenance overhead for large commercial buildings. Feature → Intuitive control panel and HVAC-specific settings menu reduces commissioning time and minimizes setting errors, enabling faster startup and consistent performance across multiple units. Application: New installations and retrofits in commercial HVAC networks. Feature → Optional Bluetooth capability enables remote commissioning and monitoring, cutting on-site visits and enabling centralized diagnostics for facilities management teams. Application: Remote monitoring of rooftop units and centralized plant rooms. Feature → Standard IP21 enclosure with optional IP55 and flange mounting offers installation flexibility in varied environments, from clean mechanical rooms to dusty spaces. Business impact: improved protection and easier mounting without costly enclosure changes. Application: Wall-mounted drives in constrained spaces. Feature → Energy-efficient drive operation with built-in optimization reduces standby losses and peak demand, delivering measurable cost savings over the system lifecycle. Application: Large campuses and multi-zone HVAC systems. Feature → Broad compatibility with HVAC loads, including air handlers, pumps, and refrigeration compressors, supports scalable control strategies. Business value: simplifies procurement and standardization across projects. Long-tail keywords integrated: HVAC drive, low-voltage drive, wall-mounted drive, air-handling units, chillers, remote commissioning, energy efficiency, AHU control, installation ease, flange mounting.
Get a Quick Quote for a ABB 3AXD50000417728
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417728?
Enquire Now
FAQs
The ACH580-01-060A-2 is designed for wall-mount installation with an IP21 enclosure as standard and optional IP55 or flange mounting for tougher environments. Plan for proper venting and accessible wiring space, and leverage the HVAC-specific settings menu to minimize commissioning time. Bluetooth allows remote setup and monitoring, reducing on-site visits.
Yes. The ACH580 HVAC drive is built to manage fans, pumps, and compressors in HVAC applications such as air handling units and chillers. Its integrated control features support energy-efficient operation, smooth speed control, and reliable start-up sequences across multiple loads.
The device specifies 230 V input, a 60 A current rating, and approximately 15 kW of power handling (Pn 15 kW). These specs place it within standard low-voltage HVAC drive applications, enabling efficient motor control for medium-sized HVAC equipment.
The ACH580-01-060A-2 ships with a standard IP21 enclosure and wall-mount capability. Optional IP55 protection and flange mounting options are available, expanding installation options for harsher environments or constrained spaces where conventional wall mounting is impractical.
Benefits include reduced commissioning time due to HVAC-specific menus and help assistants, remote monitoring via Bluetooth, and energy-efficient motor control that lowers energy bills. The combination of easier startup, fewer on-site visits, and longer motor life contributes to a faster return on investment and lower maintenance costs over the system lifecycle.
