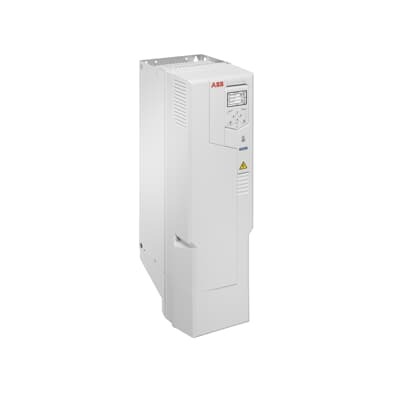

ABB ACH580-01-089A-2 Drive - IP21/IP55 Ready for HVAC
Part Number: 3AXD50000417735
Quick Summary
ABB ACH580-01-089A-2 HVAC drive provides precise speed control for fans, pumps, and air handling in commercial buildings. This solution tackles the challenge of lengthy startup times and energy waste by offering built-in HVAC-focused features that simplify commissioning and optimize performance from day one. With IP21 protection as standard and optional IP55 and flange mounting, along with a CE-aligned safety design, it supports regulatory compliance across regions. Optional Bluetooth enables remote commissioning and monitoring, reducing on-site visits. For maintenance teams and integrators, the ACH580 delivers reliable operation, improved system efficiency, and a clear path to lower operating costs across HVAC networks.
Product Information
Extended Description
3AXD50000417735 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC-specific control features enable precise speed regulation for fans, pumps and compressors. Business impact is smoother operation with fewer fluctuations and improved energy efficiency through optimized ramping and motor control. This is particularly effective in air handling units, chiller systems, and central plants, where reliability directly translates to reduced operating costs. The intuitive control panel includes an HVAC primary settings menu and help assistants, accelerating startup and reducing commissioning time for engineers and technicians. Optional Bluetooth supports remote commissioning and monitoring, minimizing site visits and enabling proactive maintenance. The IP21 standard enclosure, with IP55 and flange mounting options, provides installation flexibility in busy mechanical rooms, while the wall-mounted form factor saves valuable space. Compatibility with the ACH580 family ensures easy integration with existing drive ecosystems, supporting scalable upgrades and consistent performance across facilities.
Get a Quick Quote for a ABB 3AXD50000417735
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417735?
Enquire Now
FAQs
The ACH580-01-089A-2 is a wall-mounted LV AC drive designed for HVAC loads and wires to three-phase motors up to 22 kW at 230 V. It features an HVAC-focused primary settings menu, built-in control for fans, pumps and compressors, and supports remote commissioning via optional Bluetooth. This simplifies wiring, reduces panel complexity, and speeds up system commissioning in existing control architectures.
Key specs include power rating of 22 kW, current rating of 89 A, and a 230 V supply. The standard enclosure is IP21, with IP55 option and flange mounting variants available for harsher environments or tighter spaces. It provides built-in HVAC control, energy-efficient operation through advanced motor control, and optional Bluetooth for remote commissioning and monitoring to minimize on-site service windows.
Yes. The ACH580-01-089A-2 is purpose-built for HVAC applications like air-handling units, fans, pumps, and chillers. Its wall-mounted form factor fits mechanical rooms with limited space, while IP55 variants and flange mounting options expand installation versatility. The drive supports multi-step control sequences typical of central plants, delivering reliable operation in office complexes, airports, and hospitals.
The drive ships with IP21 protection as standard and offers IP55 options for more demanding environments, along with flange mounting variants for installation flexibility. The design aligns with CE-relevant safety and electrical standards, supporting compliance in many regional markets. These features help facilities meet common electrical codes and safety requirements for HVAC drive installations.
Deploying the ACH580 typically yields faster project delivery thanks to built-in HVAC settings and a streamlined commissioning workflow. Energy savings arise from precise speed control of fans, pumps and compressors, reducing running costs over time. Remote monitoring via Bluetooth lowers maintenance visits, and the compact, space-saving wall-mounted design can reduce enclosure and wiring costs across multiple units.
