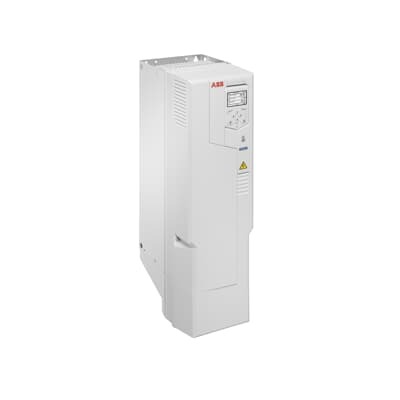

ABB ACH580-01-115A-2 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000417742
Quick Summary
The ABB ACH580-01-115A-2 HVAC drive provides precise motor control for fans, pumps, and compressors in building HVAC systems. Installers often struggle with lengthy commissioning and tuning that delay start-up and waste energy. With CE certification and IP21 enclosure, plus optional IP55 and Bluetooth for remote setup, it supports reliable, compliant deployment. This drive reduces installation time and simplifies control integration, delivering scalable HVAC automation and cost savings for procurement teams. In addition, it supports energy-management objectives and aligns with modern building automation standards to simplify audits and maintenance. Engineers appreciate the clear HVAC-focused settings that speed commissioning, improve compliance, and support future upgrades.
Product Information
Extended Description
3AXD50000417742 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC-specific control for fans, pumps, and compressors. Business Impact: Ensures smooth operation, reduces commissioning time, and improves energy efficiency. Application: Air handling units, ventilation fans, and compressors. Feature: Intuitive control panel with HVAC primary settings and help assistants. Business Impact: Faster startup and fewer operator errors, lowering commissioning costs. Application: New installations and retrofit projects in commercial buildings. Feature: Optional Bluetooth connectivity enables remote commissioning and monitoring. Business Impact: Cuts site visits, speeds validation, and supports predictive maintenance. Application: Remote HVAC system startups and fault diagnosis. Feature: IP21 enclosure standard with IP55 and flange-mount options. Business Impact: Flexible installation in typical interiors and harsher environments, expanding site options. Application: Wall-mounted installations in mechanical rooms and rooftops. Feature: 230 V LV AC drive with 30 kW rating and 115 A current handling. Business Impact: Suitable for mid-size HVAC loads, enabling scalable system design and energy-efficient variable-speed control. Application: Fans, pumps, and chillers in HVAC networks.
Get a Quick Quote for a ABB 3AXD50000417742
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417742?
Enquire Now
FAQs
The ACH580-01-115A-2 is a 230 V LV AC wall-mounted drive designed for HVAC applications, delivering up to 30 kW and 115 A. It supports typical building HVAC loads and is compatible with fans, pumps, and compressors in AHUs and ventilation systems. Installation benefits include compact footprint and straightforward wiring, with options for IP21 standard and IP55 variants.
Key specifications include 30 kW nominal power, 115 A current, 230 V input, and a wall-mount LV drive configuration. It comes with IP21 standard enclosure, IP55 option for tougher environments, and HVAC-focused control functions for fans, pumps, and compressors. Optional Bluetooth enables remote commissioning and monitoring, enhancing speed-to-commission and fault diagnosis.
Yes. The ACH580-01-115A-2 is purpose-built for HVAC loads such as air handling units, fans, pumps, and compressors found in AHUs and chillers. Its HVAC-centric settings simplify tuning for airflow control, and built-in features reduce startup times, enabling reliable operation of mid-size HVAC equipment while supporting energy-efficient operation.
The drive features CE-compliant design and an IP21 enclosure standard, with IP55 variants available for more exposed environments. Bluetooth connectivity is optional for remote commissioning and monitoring. These protections help ensure regulatory compliance, safer operation, and easier service in building automation and retrofit projects.
By integrating HVAC-specific control, simplified startup, and remote commissioning, the ACH580-01-115A-2 reduces on-site labor and commissioning time, cutting installation costs. Energy-efficient variable-speed control further lowers running costs. Long-term maintenance is aided by remote monitoring and fewer site visits, improving overall return on investment for building operators.
