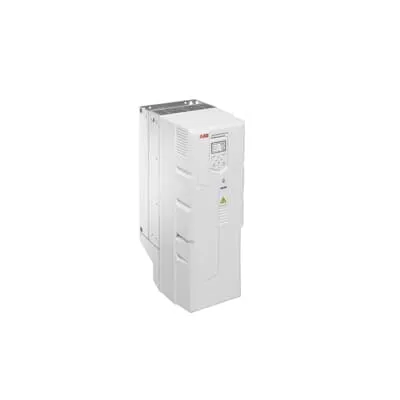

ABB 3AXD50000417759 HVAC Drive - ACH580 IP21 Wall-Mount
Part Number: 3AXD50000417759
Quick Summary
ABB ACH580 HVAC drive is a wall-mounted LV controller for HVAC fans, pumps, and compressors. Projects often stall on lengthy commissioning and uneven control when wiring multiple devices, but this drive streamlines setup and improves reliability in mission-critical environments. The solution ships with an IP21 enclosure, while IP55 and flange mounting options extend installation flexibility, and an optional Bluetooth capability enables remote commissioning and monitoring, all backed by CE certification for regulatory compliance. By delivering HVAC-specific control features and energy-efficient operation, it reduces installation time, lowers operational costs, and supports scalable building automation strategies for commercial, industrial, and data-center HVAC systems.
Product Information
Extended Description
3AXD50000417759 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors. Business impact: Reduces commissioning time and minimizes misconfigurations, delivering stable operation across changing loads. Application: Air handling units, chillers, and pumps in commercial HVAC systems. Feature: Intuitive control panel with HVAC-specific primary settings menu and help assistants. Business impact: Accelerates startup and commissioning, lowering on-site labor costs. Application: New installations and retrofits in office buildings, hotels, and data centers. Feature: Optional Bluetooth capability for commissioning and monitoring from distance. Business impact: Enables remote diagnostics and reduces site visits, improving maintenance response times. Application: Multi-site HVAC installations and integrated building automation projects. Feature: Standard IP21 enclosure with IP55 and flange mounting options. Business impact: Flexible installation in varying indoor conditions and easier cable routing. Application: Wall-mounted installations in equipment rooms and mechanical spaces. Feature: Power rating of 37 kW, 144 A, 230 V. Business impact: Supports mid-size HVAC motors, enabling efficient motor control and energy management. Application: Fans and pumps in medium-scale HVAC systems. Feature: Built-in energy-efficient operation features for normal and mission-critical use. Business impact: Reduces energy consumption and lifecycle costs while improving system reliability. Application: Commercial buildings, data centers, and industrial HVAC installations.
Get a Quick Quote for a ABB 3AXD50000417759
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417759?
Enquire Now
FAQs
The ACH580 is designed as a wall-mounted LV drive that wires to standard AC motors controlling fans, pumps, and compressors. Its HVAC-specific menus simplify parameterization, reducing setup time and ensuring consistent control across equipment from fans to chillers. Compatibility with standard 230 V supply and 144 A current handling supports mid-size HVAC motors commonly found in retrofit or new installations.
Model 3AXD50000417759 corresponds to the ACH580 HVAC drive with a 37 kW power rating, 144 A current, and 230 V supply. It ships with an IP21 enclosure as standard and offers IP55 and flange-mount options. An optional Bluetooth capability enables remote commissioning, while CE marking confirms regulatory compliance for commercial installations.
Yes. The ACH580 HVAC drive offers an optional Bluetooth capability that enables commissioning and monitoring from a distance. This feature is especially valuable for multi-site deployments or facilities with limited access, reducing on-site visits, speeding up start-up, and enabling easier ongoing diagnostics and maintenance.
The device features an IP21 standard enclosure with optional IP55 and flange mounting units to suit different installation environments. CE certification ensures compliance with essential regulatory requirements. Bluetooth remote commissioning is available as an option, improving remote maintenance capabilities for building automation and HVAC control projects.
The ACH580 delivers energy-efficient operation and simplified commissioning, which reduces energy consumption and labor costs during installation and maintenance. Its integrated control for fans, pumps and compressors lowers risk of misconfigurations, while remote diagnostics and scalable building automation support improve uptime and enable proactive maintenance across multiple sites.
