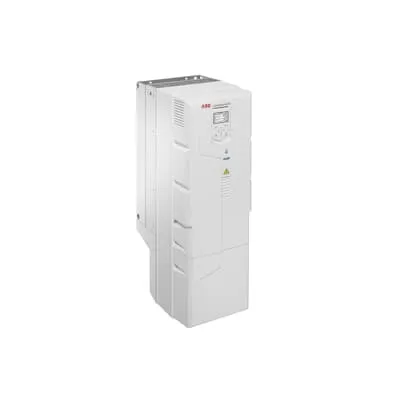

ABB 3AXD50000417766 ACH580 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000417766
Quick Summary
ABB ACH580 HVAC drive controls fans, pumps, and compressors for HVAC systems in commercial buildings. Startup and commissioning can be time-consuming and error-prone without HVAC-specific settings and guided menus. It supports IP21 enclosures with IP55 option and includes an HVAC-focused primary settings menu plus Bluetooth for remote commissioning. This combination reduces installation time and enables energy-efficient operation, delivering tangible business value for building operators and service teams.
Product Information
Extended Description
3AXD50000417766 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC-specific control features streamline startup and operation. By integrating fan, pump, and compressor control with a purpose-built settings menu, the ACH580 reduces commissioning time and minimizes setup errors. Practical applications include air handling units, chillers, and complex HVAC sequences where precise speed control delivers energy savings and quieter operation. The wall-mounted design with IP21 enclosure, and available IP55 and flange mounting options, provides installation flexibility in tight mechanical spaces. This reduces cabinet footprint and simplifies retrofits in retrofit HVAC projects. Bluetooth capability enables remote commissioning and monitoring, reducing on-site visits and enabling faster fault diagnosis. With a 45 kW power rating and 171 A current at 230 V, the ACH580 delivers reliable performance for building HVAC loads while supporting energy efficiency goals; built-in primary settings and help assistants simplify startup and ongoing operation.
Get a Quick Quote for a ABB 3AXD50000417766
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417766?
Enquire Now
FAQs
The ACH580-01-171A-2 is designed for 230 V operation with a 171 A current rating and a wall-mounted IP21 enclosure. It also offers an IP55 option and flange mounting, enabling installation in tight spaces and retrofit projects while maintaining reliable control of fans, pumps, and compressors in central HVAC systems.
Model 3AXD50000417766 corresponds to ABB's ACH580 HVAC drive rated at 45 kW, 171 A, 230 V. It delivers HVAC-focused control for building systems, supports Bluetooth for remote commissioning, and includes an HVAC primary settings menu that accelerates startup and reduces commissioning risk.
Yes. The ACH580 is specifically designed for HVAC workloads, offering built-in control for fans, pumps and compressors, with smooth speed regulation to optimize energy use in air handling units, chillers, and other HVAC equipment.
ABB provides an IP21 enclosure as standard for the ACH580 with an IP55 option available for harsher environments, enabling compliance with installation standards in exposed mechanical spaces and equipment rooms while maintaining safe operation.
With built-in HVAC settings, streamlined startup, and remote monitoring via Bluetooth, maintenance visits are reduced and downtime minimized. The result is lower total cost of ownership, faster payback, and improved system reliability across fans, pumps and compressors.
