ABB ACH580-01-276A-2 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000417780
Quick Summary
ABB ACH580-01-276A-2 HVAC drive controls fans, pumps, and compressors in HVAC systems. Installation and commissioning can be time-consuming when wiring and settings are complex, but this LV AC wall-mounted drive simplifies startup with HVAC-specific primary settings and an intuitive panel. IP21 enclosure is standard, with IP55 and flange mounting variants available to suit tougher environments. The drive supports Bluetooth remote commissioning and monitoring as an optional capability, helping technicians service systems without on-site visits. By combining built-in control with targeted protections, it delivers reliable operation for commercial buildings and industrial facilities while enabling energy-efficient performance and reduced total cost of ownership.
Product Information
Extended Description

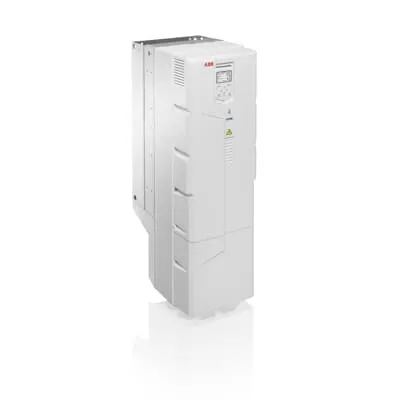

3AXD50000417780 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control functions eliminate the need for external logic for fans, pumps and compressors. Benefit: Shorter installation times and simplified wiring reduce commissioning costs; Application: AHUs and rooftop units in commercial buildings. Feature: Energy-efficient drive algorithms optimize motor speed and load management. Benefit: Lower energy consumption and operating costs; Application: Central plants, ventilation systems, and pumps. Feature: IP21 enclosure with optional IP55 and flange mounting options. Benefit: Flexible installation in restricted spaces and harsher environments; Application: Wall-mounted installations in mechanical rooms or outdoor-rated spaces. Feature: Optional Bluetooth capability enables remote commissioning and monitoring. Benefit: Faster startup, easier service, and reduced site visits; Application: Large facilities and multi-building campuses. Feature: 75 kW rating with 276 A at 230 V. Benefit: Scalable power for mid-to-high-capacity HVAC loads; Application: Chillers, fans, and pumps in commercial HVAC systems. Feature: Intuitive control panel with HVAC-specific menus. Benefit: Lower training requirements and quicker fault isolation; Application: Field technicians and engineering teams. The combination of these features supports compliance with industrial standards and enhances reliability, making it a cost-effective choice for new installations and retrofits in data centers, hospitals, and manufacturing environments.
Get a Quick Quote for a ABB 3AXD50000417780
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417780?
Enquire Now
FAQs
Plan for a wall-mounted installation in IP21-rated enclosures, with attention to cable routing and separation from EMI sources. The drive supports 230 V supply and a 75 kW rating, and the control panel provides HVAC-specific startup menus to streamline commissioning. For remote sites, consider the optional Bluetooth capability to reduce on-site visits during setup and maintenance.
Key specs include a 75 kW power rating and 276 A current at 230 V, enabling precise motor speed control for fans, pumps, and compressors. Energy efficiency is enhanced by built-in control algorithms and load-response features that optimize operation, reducing wasted energy during part-load conditions and improving overall system COP in HVAC applications.
Yes. The drive is designed for HVAC systems such as air handling units, chillers, and packaged rooftop units. Its wall-mounted form, IP21 enclosure (with IP55 option), and HVAC-specific commissioning tools support reliable operation in data centers, commercial buildings, and manufacturing facilities requiring precise air and fluid control with minimal downtime.
The base configuration uses an IP21 enclosure, with IP55 and flange mounting variants available for higher protection and flexible installation. This combination helps meet typical industrial and commercial building requirements for equipment located in mechanical rooms or restricted spaces, ensuring safe operation under varying environmental conditions.
The drive reduces commissioning time and simplifies maintenance via an intuitive interface and remote monitoring option. Energy savings from optimized motor control contribute to a favorable payback, especially in systems with variable load like fans and pumps. Regular checks focus on sensor integrity, wiring connections, and firmware updates to preserve performance.
