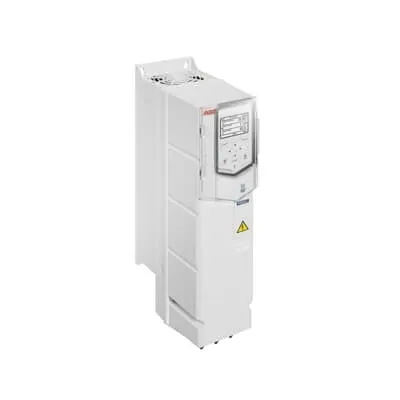

ABB ACH580-01-025A-2+B056 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000417841
Quick Summary
The ABB ACH580-01-025A-2+B056 HVAC drive provides LV AC control for HVAC fans, pumps, and compressors. It reduces commissioning time and startup risk with built-in features and an intuitive HVAC-specific control menu. CE-compliant and IP-rated enclosures ensure safe operation, with IP21 as standard and IP55 options for more demanding environments. This drives versatile wall-mount installation in commercial and industrial HVAC, delivering energy-efficient operation and easy integration with ABB control ecosystems. For engineers facing retrofit deadlines, its remote commissioning via Bluetooth option adds flexibility and reduces on-site visits. The design supports modern building automation strategies, enabling precise motor control that aligns with energy codes and lifecycle costs.
Product Information
Extended Description
3AXD50000417841 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control features and an intuitive primary settings menu → Business Impact: Accelerates startup, reduces commissioning time, and lowers risk of misconfiguration → Application: Ideal for HVAC fans, pumps, compressors, AHUs, and chillers. Feature: Wall-mountable LV drive with IP21 enclosure (IP55 option available) → Business Impact: Simplifies installation in restricted spaces and expands installation options for both new builds and retrofits → Application: Wall-mounted solutions in commercial buildings and data centers. Feature: Optional Bluetooth commissioning and remote monitoring → Business Impact: Enables off-site setup, faster commissioning, and ongoing diagnostics without site visits → Application: Integrated into modern HVAC control schemes for energy management. Feature: 5.5 kW, 24.5 A, 230 V input rating → Business Impact: Matches common HVAC motor loads with efficient VFD performance → Application: Controls fans, pumps, and compressors within ABB-compatible control ecosystems. Feature: IP21 standard with IP55 option and flange mounting → Business Impact: Enhances protection in varying environments and provides flexible mounting for AHUs and chillers → Application: Rugged, scalable installations that reduce lifecycle costs.
Get a Quick Quote for a ABB 3AXD50000417841
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417841?
Enquire Now
FAQs
This drive is designed for wall-mounted installation with a standard IP21 enclosure and available IP55 option for harsher environments. It supports quick commissioning via an HVAC-focused settings menu and optional Bluetooth for remote setup, minimizing on-site wiring and reducing installation time in retrofit and new-build projects.
The unit delivers 5.5 kW of power, draws 24.5 A, and operates from a 230 V supply. It is offered with IP21 protection as standard and IP55 as an option, with an integrated HVAC control feature set and optional remote commissioning for convenient system startup and monitoring.
Yes. The ACH580 HVAC drive is designed to control fans, pumps, and compressors, including air handling units and chillers. Its built-in HVAC control features, intuitive settings, and compatibility with wall-mount installations make it a practical choice for AHU and chiller applications seeking smooth operation and energy efficiency.
The drive carries IP-rated protection with IP21 as the standard enclosure and IP55 as an option for more demanding environments. It is CE-compliant, ensuring European conformity and facilitating regulatory acceptance in common HVAC markets.
Using ACH580 reduces commissioning time and startup risk, enabling quicker project ROI. The built-in HVAC control features improve energy efficiency and process stability, while remote Bluetooth commissioning lowers maintenance visits and accelerates diagnostics, contributing to lower lifecycle costs for HVAC systems.
