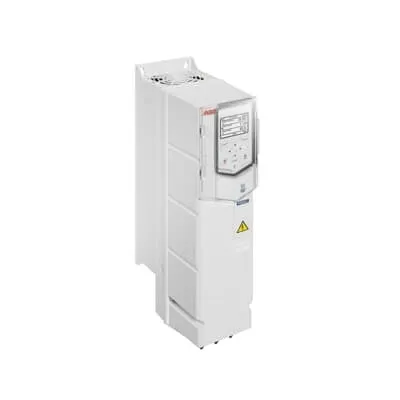

ABB 3AXD50000417858 HVAC Drive - IP21/IP55
Part Number: 3AXD50000417858
Quick Summary
ABB 3AXD50000417858 HVAC drive optimizes motor control for building HVAC systems, delivering smooth operation of fans, pumps, and compressors. Engineers often face energy waste, inconsistent performance, and lengthy commissioning; this drive reduces energy use through precise speed control and built-in HVAC-specific settings that simplify startup. Compliant with CE safety standards and available in IP21 enclosures with optional IP55 and flange-mount configurations, it is designed for reliability in mechanical rooms and harsh environments. By combining a compact wall-mounted form, an intuitive control panel, and optional Bluetooth commissioning, it delivers faster deployment, easier tuning, and ongoing monitoring—driving lower total cost of ownership.
Product Information
Extended Description
3AXD50000417858 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features provide dedicated algorithms for fans, pumps, and compressors, enabling smoother speed regulation and improved energy efficiency. This reduces energy bills and wear on motors across AHUs and chillers, while easing commissioning in complex HVAC trains. Wall-mounted LV AC drive design simplifies installation in mechanical rooms and on walls with limited footprint. IP21 enclosure and optional IP55/ flange mounting offer flexibility for installation in varied environments, cutting integration time. Bluetooth commissioning capability enables remote commissioning and monitoring, reducing on-site service visits and enabling quicker fault diagnosis. The intuitive control panel with HVAC-specific primary settings menu improves startup and tuning, shortening training cycles and accelerating project delivery. With a 7.5 kW rating at 230 V and 31.2 A, the drive matches typical HVAC motor loads, minimizing oversizing and improving overall system efficiency.
Get a Quick Quote for a ABB 3AXD50000417858
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417858?
Enquire Now
FAQs
Is the ABB 3AXD50000417858 designed for wall mounting and what enclosure ratings are available? Yes. It is optimized for wall-mounted installation in mechanical rooms, uses an IP21 enclosure by default, and offers optional IP55 and flange-mount configurations. This flexibility supports compact footprint requirements and varied installation environments, reducing field wiring complexity and enabling faster deployment in HVAC projects.
The drive is rated at 7.5 kW with a 230 V supply and draws approximately 31.2 A under normal operating conditions. It provides precise motor control for fans, pumps, and compressors, delivering energy-efficient performance and enabling smoother start-up and load matching in HVAC systems.
Yes. The ACH580 HVAC drive is purpose-built for HVAC systems, offering built-in control features tailored for fans, pumps, and compressors. It supports applications in air handling units, chillers, and other HVAC equipment, delivering stable operation, improved energy efficiency, and simplified commissioning for mission-critical systems.
The drive complies with CE safety standards and is available in an IP21 enclosure, with optional IP55 and flange mounting for enhanced environmental ruggedness. These certifications and ratings help ensure regulatory compliance and reliable operation in diverse mechanical environments, from clean rooms to more challenging spaces.
By reducing commissioning time with HVAC-specific menus, enabling energy-efficient speed control, and offering remote Bluetooth commissioning, the drive lowers installation costs and on-site service visits. Long-term benefits include lower energy bills, reduced motor wear, and predictable maintenance schedules, delivering a favorable total cost of ownership for mid- to large-scale HVAC projects.
