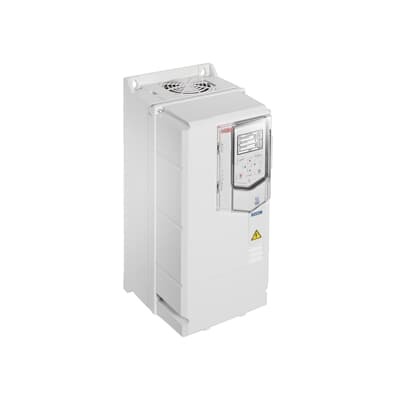

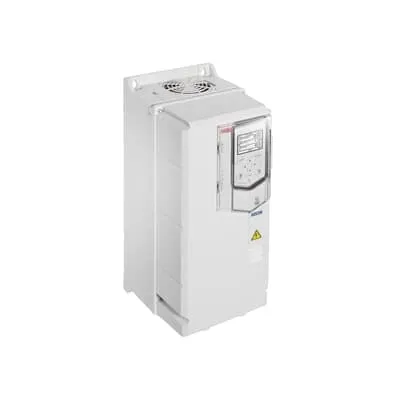

ABB ACH580-01-047A-2+B056 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000417865
Quick Summary
ABB ACH580-01-047A-2+B056 HVAC drive is a wall-mounted LV AC drive that provides precise motor control for fans, pumps and compressors in HVAC systems. This design reduces startup time and helps prevent energy waste caused by inconsistent operation. The unit supports IP21 enclosure ratings with optional IP55 and flange-mount configurations, and features Bluetooth remote commissioning to streamline setup. CE-compliant practices and ABB’s proven reliability support safer, simpler deployment across building automation projects. By combining built-in control functions with easy integration capabilities, this drive delivers measurable business value through improved energy efficiency and dependable HVAC performance.
Product Information
Extended Description
3AXD50000417865 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC-specific control for fans, pumps and compressors → Business Impact: Smooth, energy-efficient operation reduces energy costs and maintenance visits; Application: Ideal for air handling units and cooling loops in commercial buildings. Feature: Intuitive control panel with HVAC primary settings menu and help assistants → Business Impact: Faster commissioning and reduced startup mistakes; Application: Relevant for rapid onboarding of maintenance staff and contractors. Feature: Optional Bluetooth capability for remote commissioning and monitoring → Business Impact: Lower site visits, faster fault diagnosis, and real-time performance tracking; Application: Remote diagnostics for distributed HVAC assets. Feature: IP21 enclosure with wall-mounting and availability of IP55 and flange mounting → Business Impact: Flexible installation in varied mechanical environments; Application: Room-backed installs or equipment closets with space constraints. Feature: Power specification 11 kW, 47 A at 230 V → Business Impact: Properly sized drive minimizes waste and ensures reliable motor operation; Application: Centralized AHU and chiller loops requiring robust motor control. Feature: ABB ecosystem compatibility and built-in safety features → Business Impact: Easier integration with BMS and scalable upgrades; Application: Upgrading legacy HVAC drives without extensive rewiring. The result is a robust, install-ready solution that meets industry demands for energy efficiency, reliability, and maintenance visibility in modern buildings.
Get a Quick Quote for a ABB 3AXD50000417865
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417865?
Enquire Now
FAQs
The ACH580-01-047A-2+B056 is a wall-mounted LV AC drive designed for HVAC applications, supporting a 230 V supply and 11 kW motor sizing. It offers IP21 enclosure with IP55 mounting options, enabling flexible installation in mechanical rooms and service closets. For best results, ensure proper cable routing, confirm motor polarity, and utilize the HVAC-specific control menu for quick commissioning.
Key performance specs include a power rating of 11 kW, current of 47 A, and 230 V input. The drive is available in an IP21 enclosure with optional IP55 mounting. Bluetooth capability is available for remote commissioning and monitoring, facilitating faster diagnostics and reduced on-site visits.
Yes. The ACH580 HVAC drive is purpose-built for HVAC applications, with built-in features to control fans, pumps and compressors. It supports AHU and chiller loop operation, delivering smooth acceleration, energy-efficient operation, and simplified startup, which helps meet building-wide performance targets.
The unit features IP21 enclosure with options for IP55 mounting and flange installation, supporting flexible placement in HVAC rooms. While CE certification is common for ABB devices in Europe, verify your regional documentation for the latest validation and compliance specifics.
By delivering energy-efficient motor control, built-in HVAC-specific settings, and remote commissioning via Bluetooth, the ACH580 reduces energy costs and commissioning time, lowers site visits, and simplifies maintenance scheduling. These factors collectively shorten project timelines and improve lifecycle efficiency for building operators.
