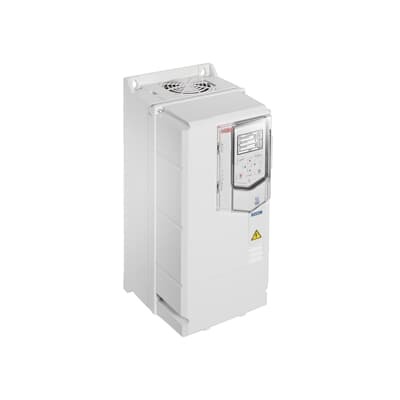

ABB ACH580-01-060A-2+B056 HVAC Drive - Wall-Mounted IP21
Part Number: 3AXD50000417872
Quick Summary
The HVAC drive ABB ACH580 delivers precise, energy-efficient control for fans, pumps, and compressors in HVAC systems. Engineers often face lengthy setup and commissioning that can delay startups and inflate project costs. This drive mitigates those challenges with built-in HVAC-focused features and an intuitive control panel that simplifies primary settings and startup tasks. The unit ships in an IP21 enclosure by default, with IP55 and flange-mount options to meet harsher environments, and a Bluetooth capability for remote commissioning and monitoring. By combining a compact wall-mounted footprint with IEC-based interfaces, it enables faster deployment, easier integration with building management systems, and measurable energy savings for HVAC-intensive operations.
Product Information
Extended Description
3AXD50000417872 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features streamline startup and operation, reducing commissioning time and minimizing configuration errors while delivering reliable control of fans, pumps and compressors in building systems. The business impact is faster project turnarounds, lower on-site labor, and improved uptime across critical AHU and chiller workflows. This drive is ideal for HVAC installations where compact, wall-mounted form factors save space without compromising performance, making retrofit projects easier and more cost-effective. Bluetooth commissioning capability enables remote setup and monitoring, cutting site visits and facilitating multi-location deployments, which translates to reduced downtime and faster fault isolation in complex facilities. IP21 standard enclosure with IP55 option supports varying environments, extending installation flexibility for both office suites and industrial HVAC rooms. The intuitive HVAC primary settings menu accelerates startup and helps facility teams integrate with existing building management systems, delivering tangible energy and maintenance benefits.
Get a Quick Quote for a ABB 3AXD50000417872
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417872?
Enquire Now
FAQs
The ACH580 comes in a wall-mountable LV AC drive format with a default IP21 enclosure and an IP55 option for tougher environments. It is designed for 230 V networks and up to 15 kW, 60 A, making it suitable for space-constrained mechanical rooms and retrofit installs in HVAC ceilings or wall spaces.
Key specs include 15 kW of power, 60 A current, and 230 V supply. The unit ships with an IP21 enclosure by default and offers an IP55 option for enhanced protection, along with an optional Bluetooth commissioning capability.
Yes. The ACH580 HVAC drive is designed to control HVAC-related equipment such as fans, pumps, and compressors, including air handling units and chillers, delivering smooth, energy-efficient operation and simplified integration with HVAC systems.
The standard configuration features an IP21 IP-rated enclosure, with an IP55 option available for harsher environments. The design is tailored for IEC HVAC control applications, and Bluetooth enables remote commissioning and monitoring when enabled.
Benefits include reduced installation and commissioning time due to built-in HVAC features and an intuitive control panel, fewer field wiring connections, and remote Bluetooth commissioning that lowers on-site visits. Energy-efficient motor control also contributes to lower operating costs across HVAC systems.
