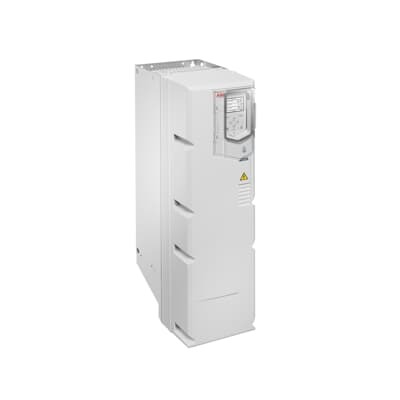

ABB ACH580 3AXD50000417889 HVAC drive - IP21/IP55
Part Number: 3AXD50000417889
Quick Summary
ACH580 HVAC drive is a low-voltage controller for HVAC systems, delivering precise fan, pump, and compressor control. However, commissioning and startup can be time-consuming in mission-critical environments. Built for CE conformity, this drive is available in IP21 standard enclosures, with IP55 and flange mounting variants to meet rugged installation needs. It also supports Bluetooth remote commissioning, enabling fieldinstall and remote monitoring. By combining built-in HVAC-specific settings with an intuitive panel, the ACH580 reduces installation time while delivering reliable, energy-efficient operation. This translates to lower lifecycle costs, easier compliance, and smoother system ramp-up for engineers, procurement teams, and operators seeking predictable performance.
Product Information
Extended Description
3AXD50000417889 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACH580 HVAC drive ships with built-in HVAC control capabilities designed to manage fans, pumps, and compressors, enabling precise speed control and smooth operation. This translates to improved energy efficiency and reduced wear on mechanical equipment in air handling units, chillers, and ventilation systems. Application-wise, the drive supports startup sequences that minimize inrush and preserve motor health during commissioning. Feature → Business Impact → Application: The intuitive control panel and HVAC-specific primary settings menu shorten the setup time and reduce commissioning errors. Users benefit from faster project delivery, easier tuning, and consistent performance across multiple units in commercial buildings or data center cooling loops. Feature → Business Impact → Application: Optional Bluetooth connectivity provides remote commissioning and monitoring, cutting on-site visits and enabling quick troubleshooting. This capability is especially valuable for distributed HVAC networks and critical facilities where uptime is paramount. Feature → Business Impact → Application: Wall-mount installation with IP21 enclosure, plus IP55 and flange mounting options, offers flexible deployment in constrained mechanical rooms or rooftop enclosures, improving space utilization and simplifying retrofits. Feature → Business Impact → Application: The 89 A, 22 kW rating at 230 V ensures robust handling of variable load profiles in fans and pumps, supporting compliant electrical distribution and predictable thermal performance in HVAC projects.
Get a Quick Quote for a ABB 3AXD50000417889
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417889?
Enquire Now
FAQs
Yes. The ACH580 HVAC drive is designed for wall-mount installation with standard IP21 protection and easy integration into HVAC control schemes. For harsher environments, IP55 or flange-mount variants are available, providing adaptable mounting options for rooftops, mechanical rooms, or equipment rooms while maintaining accessible wiring and service access.
The drive offers a 22 kW (Pn) power rating with a current of 89 A at 230 V. It is a low-voltage AC drive intended for HVAC use, with the ability to regulate speed for fans, pumps, and compressors. Enclosures include IP21 by default, with IP55 and flange options. Bluetooth support is available for remote commissioning and monitoring.
Absolutely. The ACH580 is built to control HVAC equipment such as fans, pumps, and compressors, including more complex systems like air-handling units and chillers. Its built-in HVAC-specific settings streamline startup and operation, while energy-saving features help optimize system performance across multiple AHU or chiller loops.
The ACH580 is CE certified for regulatory compliance in many regions. It is available in IP21 standard enclosures, with IP55 and flange mounting variants for more demanding installations. Bluetooth capability enables remote commissioning, and ABB’s broader ecosystem supports ongoing maintenance and compliance alignment across facilities.
By combining built-in HVAC control features, an intuitive control panel, and HVAC-specific onboarding menus, the ACH580 minimizes wiring, tuning, and commissioning time. Bluetooth remote commissioning reduces site visits, while energy-management capabilities deliver measurable efficiency gains, contributing to lower energy costs and faster return on investment for new installations or retrofits.
