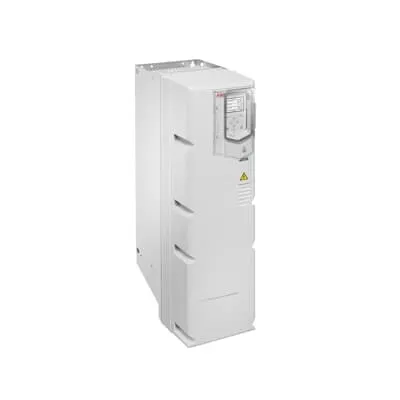

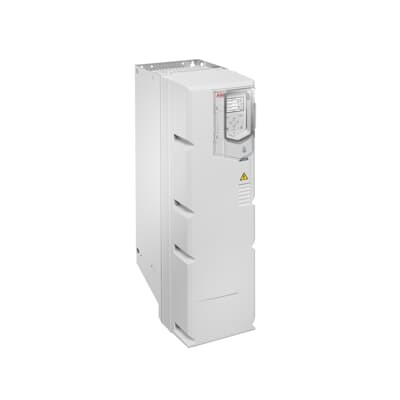

ABB ACH580-01-115A-2+B056 Drive - IP21 HVAC
Part Number: 3AXD50000417896
Quick Summary
ABB ACH580-01-115A-2+B056 drive controls HVAC fans, pumps and compressors for reliable building automation. Engineers frequently confront lengthy commissioning, setup complexity, and integration hurdles that slow project timelines and inflate costs. Key features like IP21 enclosure with optional IP55 and flange mounting support safe, compliant installation in variable HVAC environments. Coupled with built-in HVAC control, Bluetooth commissioning capability, and simple integration with building management systems, it helps reduce energy use and lifecycle costs.
Product Information
Extended Description
3AXD50000417896 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors. Business impact: delivers precise motor control that improves energy efficiency, reduces wear, and lowers operating costs across the plant. Application: ideal for air handling units, rooftop units, and chillers in commercial and industrial HVAC projects. Feature: Intuitive control panel with HVAC primary settings menu and help assistants. Business impact: startup and commissioning are faster, with fewer operator errors. Application: valuable during retrofits or new builds where technicians need guided setup. Feature: Bluetooth connectivity enables remote commissioning and monitoring. Business impact: remote access reduces site visits, accelerates parameter tuning, and improves fault diagnosis. Application: multi-site facilities or distributed HVAC networks where field access is limited. Feature: IP21 standard enclosure with IP55 option and flange mounting. Business impact: flexible installation in space-constrained rooms and improved ingress protection when required. Application: wall-mounted installations in mechanical rooms or service corridors. Feature: 230 V, 3-phase compatibility with Pn 30 kW, 115 A rating. Business impact: ensures compatibility with common building electrical infrastructure, reducing derating and wiring mismatches. Application: mid-size HVAC systems serving office, manufacturing, and data-center environments. Feature: Built-in protection and compatibility with building management systems. Business impact: enhances reliability and enables centralized monitoring for preventive maintenance and energy reporting. Application: OEMs and contractors integrating HVAC drives into larger control architectures.
Get a Quick Quote for a ABB 3AXD50000417896
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417896?
Enquire Now
FAQs
To install the ABB ACH580-01-115A-2+B056 on a 230 V three-phase supply, mount the drive on a suitable wall, connect L1-L3 to the 230 VAC three-phase supply, and connect earth. Wire the motor to U/V/W per the manual, then use the HVAC primary settings for initial parameters. If needed, attach the IP55 flange kit and enable Bluetooth for remote commissioning.
Key performance specs include a nominal power rating of 30 kW, a rated current of 115 A, and 230 V input. The device ships with an IP21 enclosure by default and offers an IP55 option, is wall-mounted for ease of installation, and provides HVAC-specific control features to optimize fans, pumps and compressors.
Yes. The ACH580-01-115A-2+B056 is purpose-built for HVAC applications, including air handling units, chillers, and related equipment. Its built-in HVAC control, intuitive setup, and remote monitoring capabilities help coordinate multiple loads (fans, pumps, compressors) with improved energy efficiency and simplified commissioning in these systems.
The drive provides an IP21 enclosure standard with an IP55 option available, supporting protected operation in HVAC installations. It is designed for wall-mounted installation and offers compatibility with typical building electrical and control environments, aiding compliant deployment in commercial and industrial facilities.
ROI benefits come from reduced commissioning time, energy savings from efficient motor control, and lower lifecycle costs due to remote commissioning and monitoring. The built-in HVAC-specific features simplify startup, while IP-rated enclosures and compatible mounting options minimize installation labor and ongoing maintenance needs.
