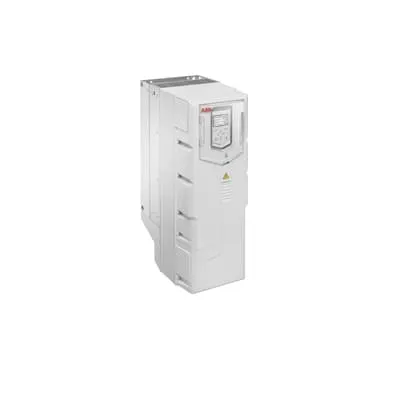

ABB ACH580-01-144A-2+B056 LV AC HVAC Drive - IP21/IP55
Part Number: 3AXD50000417902
Quick Summary
The ACH580 HVAC drive is a LV AC wall-mounted drive that provides precise speed control for fans, pumps and compressors in HVAC systems. Installers often face lengthy commissioning and startup, leading to downtime and higher project costs. This solution is CE-compliant with an IP21 enclosure by default and offers optional IP55 and flange mounting to fit challenging environments. For OEMs and facilities, the built-in HVAC control features, intuitive settings, and remote commissioning options translate into faster project delivery, reduced engineering effort, and lower total cost of ownership across commercial and industrial applications.
Product Information
Extended Description
3AXD50000417902 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control and an intuitive primary settings menu. Business Impact: Speeds up commissioning, reduces wiring complexity and engineering time. Application: Ideal for controlling fans, pumps, and compressors in air handling units and chillers, delivering reliable startup and steady operation. Feature: Optional Bluetooth connectivity for commissioning and monitoring. Business Impact: Enables remote troubleshooting and away-from-site updates, cutting service calls and downtime. Application: Useful during commissioning phases and ongoing system optimization in large facilities. Feature: Enclosure versatility with IP21 standard and optional IP55 plus flange mounting. Business Impact: Expands installation options, improving protection in varied environments and enabling wall- or cabinet-based deployments. Application: HVAC rooms with vibration, dust, or exposure considerations. Feature: 37 kW, 144 A, 230 V rating with robust motor control. Business Impact: Delivers strong performance for mid-scale HVAC loads while maximizing energy efficiency and equipment life. Application: Air handlers, pumps and condensers in commercial buildings and light industrial plants. Feature: Integrated diagnostics and safeguards. Business Impact: Enhances reliability, reduces unscheduled downtime, and simplifies maintenance planning. Application: Critical HVAC systems requiring consistent, controllable operation in mission-critical environments.
Get a Quick Quote for a ABB 3AXD50000417902
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417902?
Enquire Now
FAQs
The ACH580-01 is a wall-mounted LV AC drive designed for HVAC loads. Install on a suitable wall or mounting surface, connect 230 V supply, and wire the drive to fans, pumps, or compressors. Use the built-in HVAC settings menu for quick startup, and consider IP21 as standard enclosure with IP55 options for tougher environments. Bluetooth can support remote commissioning when needed.
Key specs include a 37 kW (Pn) rating, 144 A current, and 230 V supply. The unit features a wall-mounted form factor with IP21 envelope by default, and optional IP55 and flange mounting. It is intended for HVAC applications such as fans, pumps, and air-handling components, with built-in control menus to simplify setup.
Yes. The ACH580 is specifically designed for HVAC applications, including air-handling units, fans, pumps, and compressors in chillers. Its built-in HVAC control features and compatibility with 230 V networks support reliable operation, energy-efficient performance, and streamlined commissioning for both new installs and retrofits.
The device is CE-compliant and ships with an IP21 enclosure by default, with IP55 and flange-mount options available for harsher environments. Optional Bluetooth enables remote commissioning and monitoring, contributing to safer, faster startups and ongoing optimization in regulated facilities.
By reducing commissioning time, enabling remote diagnostics, and improving energy efficiency through precise motor control, the ACH580 can lower total cost of ownership. Maintenance is simplified by built-in diagnostics and alarms, which help prevent unscheduled downtime and extend equipment life in HVAC systems.
