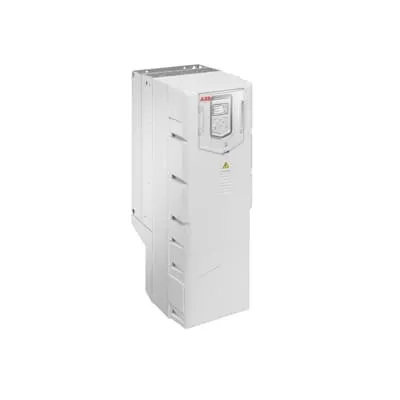

ABB 3AXD50000417919 HVAC Drive - 45 kW IEC 230V
Part Number: 3AXD50000417919
Quick Summary
ABB ACH580 HVAC drive is a wall-mounted LV AC drive for HVAC systems. It helps reduce installation time and simplify commissioning for reliable HVAC operation. The drive ships with an IP21 enclosure and optional IP55 mounting, enabling flexible installation in standard to harsher environments. It is designed for use with fans, pumps, and compressors in air-handling units and chillers, including mission-critical applications. Beyond reliability, the ACH580 enables energy-efficient operation and easy remote commissioning via optional Bluetooth, supporting modern building automation and maintenance workflows. This combination of built-in control features and a purpose-built HVAC interface translates into faster startups, lower lifecycle costs, and improved system performance for engineers and procurement teams.
Product Information
Extended Description
3AXD50000417919 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control supports fans, pumps, and compressors, delivering smoother operation and energy efficiency. Business impact: reduced energy consumption and quieter, more predictable plant performance in air-handling units and chillers. Application: ideal for commercial and industrial HVAC systems seeking reliable, efficient control. The intuitive HVAC-specific control panel with primary settings and help assistants accelerates commissioning and minimizes startup time. Business impact: faster project kick-off, fewer on-site errors, and lower labor costs. Application: service teams and installers benefit during initial setup and ongoing operation. Optional Bluetooth connectivity enables remote commissioning and monitoring, reducing on-site visits and enabling proactive maintenance. Business impact: improved asset availability and reduced maintenance costs. Application: distributed HVAC networks and facilities with remote sites. IP21 enclosure is standard, with IP55 mounting available for tougher environments. Business impact: installation flexibility and extended serviceability. Application: rooftop units, warehouses, and industrial facilities. The 45 kW, 171 A at 230 V specification provides a compact, wall-mounted solution suitable for mid-sized HVAC equipment. Business impact: simplified electrical integration and smaller footprint. Application: furnaces, chillers, and air-handling components requiring precise speed control.
Get a Quick Quote for a ABB 3AXD50000417919
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417919?
Enquire Now
FAQs
The ACH580 HVAC drive is designed for wall-mounted installation as a compact LV drive for HVAC equipment. It includes an IP21 enclosure as standard, with IP55 mounting available for more demanding environments. This flexibility supports a variety of spaces, from mechanical rooms to tight service corridors, while preserving accessibility for maintenance and commissioning.
Model 3AXD50000417919 corresponds to 45 kW of drive capability with a current rating of 171 A at a supply voltage of 230 V. It is intended for LV HVAC applications and is compatible with fans, pumps, and compressors. The enclosure options include IP21 standard and IP55 for harsher environments, aligning with typical HVAC electrical installation practices.
Applications such as air-handling units, central air systems, chillers, and varying-speed fans and pumps benefit from the ACH580. The drive’s built-in HVAC features support stable operation, energy efficiency, and smoother startup, helping facilities reduce energy bills and maintain comfortable indoor environments in commercial and industrial settings.
The ACH580 includes an optional Bluetooth capability that enables commissioning and monitoring from a distance. This supports remote fault diagnosis, easier updates, and minimized on-site visits. Remote capabilities are especially valuable for multi-site facilities, ongoing commissioning, and uptime optimization without requiring frequent site visits.
By combining built-in HVAC control with an intuitive interface and optional remote access, the ACH580 reduces installation time and commissioning effort, lowers energy consumption through precise speed control, and enables proactive maintenance via remote monitoring. These factors collectively shorten payback periods and improve lifecycle cost management for HVAC projects.
