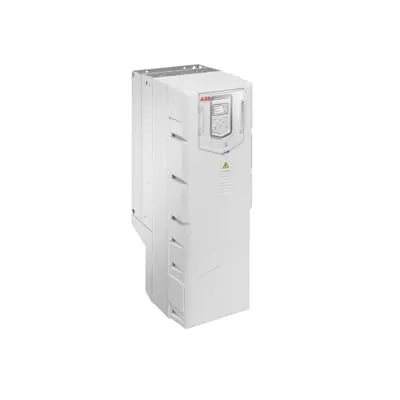

ABB ACH580-01-213A-2+B056 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000417926
Quick Summary
The ABB ACH580-01-213A-2+B056 HVAC drive is a compact, wall-mounted controller that optimizes fans, pumps and compressors in commercial and industrial HVAC systems. Installing drives in complex climate-control projects often leads to lengthy commissioning, configuration errors, and extended downtime. This unit features an IP21 enclosure and offers IP55 and flange mounting options, along with an optional Bluetooth capability for remote commissioning and monitoring. Its built-in HVAC-specific control logic and intuitive setup slice installation time, while delivering reliable operation and energy-efficient performance, helping facilities meet targets without sacrificing system resilience. Designed for 230 V operation and up to 55 kW, it suits retrofit and new-build projects where space is at a premium.
Product Information
Extended Description
3AXD50000417926 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors. Benefit: Reduces energy consumption and improves process stability, delivering consistent climate control for AHUs, chillers, and rooftop units. Application: Suitable for commercial and industrial HVAC systems seeking efficiency gains. Feature: Wall-mounted, compact footprint with IP21 enclosure. Benefit: Simplifies installation in constrained mechanical rooms and retrofit spaces, cutting install time and labor costs. Application: Ideal for retrofit projects and new builds with limited wall space. Feature: IP55 option and flange mounting variants. Benefit: Provides installation flexibility in harsh environments and vibration-prone areas, improving reliability. Application: Outdoor equipment housings and industrial settings adjacent to HVAC equipment. Feature: Bluetooth-enabled commissioning and monitoring (optional). Benefit: Enables remote setup, diagnostics, and reduced site visits, speeding up start-up. Application: Field service and remote monitoring for large complexes. Feature: Intuitive control panel with HVAC primary settings menu. Benefit: Accelerates startup, reduces misconfiguration, and improves operator confidence. Application: Technicians onboarding and ongoing system tweaks across multiple AHUs and chillers. Feature: 230 V supply with 55 kW rating and 213 A current. Benefit: Compatible with common electrical infrastructure while delivering substantial HVAC load control. Application: Medium to large HVAC installations needing robust VFD performance.
Get a Quick Quote for a ABB 3AXD50000417926
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417926?
Enquire Now
FAQs
The ACH580-01-213A-2+B056 is designed for wall mounting with a compact footprint. Start with a clean, vibration-free wall surface, ensure proper clearance for cooling and wiring, and mount in an IP21-rated enclosure. Use the provided terminal blocks for power and motor connections, then program the HVAC-specific settings from the intuitive control panel. For retrofit projects, verify alignment with existing ductwork and ensure supply wiring matches the 230 V, 3-phase or single-phase configuration as specified by ABB documentation. Optional IP55 and flange mounting variants provide additional flexibility in rugged environments.
This drive is engineered to control fans, pumps and compressors in HVAC systems. Key applications include air handling units, chillers, rooftop units, and packaged HVAC systems where precise speed control improves energy efficiency and system stability. Its built-in HVAC-specific control menu supports startup and commissioning, while Bluetooth capability facilitates remote monitoring and diagnostics, reducing in-field service time on large campuses.
The ACH580-01-213A-2+B056 operates at 230 V with a 55 kW nominal power rating and draws up to 213 A. It comes in an IP21 enclosure by default, with IP55 and flange mounting options available. Compatibility with standard HVAC electrical infrastructure is a key advantage, enabling straightforward integration with existing motors and drives while supporting reliable protection and fault handling for continuous operation.
Yes, the ACH580 offers optional Bluetooth commissioning. This capability enables remote setup, monitoring, and diagnostics, reducing on-site visits during startup and maintenance. For facilities with dispersed equipment, technicians can configure primary HVAC settings, verify drive status, and perform firmware checks from a central location, improving uptime and speeding up issue resolution.
Deploying the ACH580 delivers measurable ROI through energy savings from precise fan, pump, and compressor control, faster installation and commissioning, and lower lifecycle costs from reliable operation and reduced maintenance visits. Its compatibility with standard 230 V electrical systems and available IP55 mounting options make it a versatile choice for retrofit and new-build projects in large facilities.
