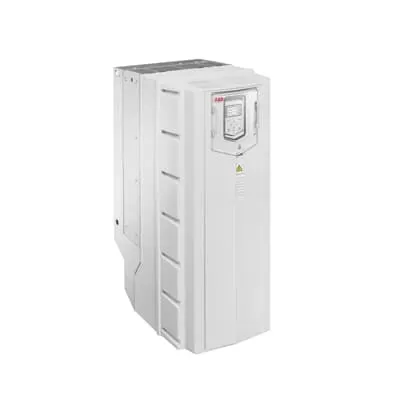

ABB ACH580-01-276A-2+B056 HVAC Drive - IP21 Enclosure, Wall-Mount
Part Number: 3AXD50000417933
Quick Summary
ACH580 HVAC drive is a compact LV AC wall-mount controller designed to regulate fans, pumps and compressors across HVAC systems. Engineers often wrestle with long commissioning times, wiring complexity, and inconsistent control performance that hurts uptime. This ABB solution addresses those challenges with built-in HVAC features, an intuitive primary settings menu, and optional Bluetooth for remote commissioning. The unit ships in an IP21 enclosure, with IP55 and flange-mount options available for tougher environments. By combining dedicated HVAC control logic with easy startup and remote monitoring capabilities, it delivers faster project delivery, reduced wiring errors, and improved energy efficiency, supporting lower lifecycle costs and reliable operation in mission-critical facilities.
Product Information
Extended Description
3AXD50000417933 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control logic and a dedicated HVAC primary settings menu. Business Impact: Shorter commissioning cycles, fewer configuration errors, and faster operator onboarding. Application: Air handling units, fans, and pumps in commercial and industrial HVAC installations. Feature: Bluetooth-enabled commissioning and monitoring. Business Impact: Remote setup and diagnostics reduce site visits and maintenance costs. Application: Multi-zone HVAC systems and distributed equipment where on-site access is limited. Feature: IP21 enclosure with wall-mount design (IP55 and flange-mount options available). Business Impact: Flexible installation in standard or harsher environments and simpler retrofits. Application: Wall-mounted drives for new builds and retrofit projects in mechanical rooms. Feature: 75 kW, 276 A, 230 V power rating. Business Impact: Adequate drive capacity for medium-to-large HVAC loads with reliable performance. Application: Control of fans, pumps, and compressors in HVAC gear, chillers and air-handling equipment. Feature: Energy-efficient operation and integrated control for HVAC systems. Business Impact: Reduced energy usage and operational costs with precise speed control. Application: Constant or variable speed control for efficient ventilation, cooling loops, and process climate control. Industry Insight: The ACH580 series is purpose-built for HVAC trends toward compact, easy-to-install drives with HVAC-specific features, helping integrators meet energy codes while accelerating project timelines.
Get a Quick Quote for a ABB 3AXD50000417933
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417933?
Enquire Now
FAQs
The ACH580-01-276A-2+B056 is designed for wall-mount installation with an IP21 enclosure and is compatible with a range of HVAC equipment including fans, pumps, and compressors. Optional IP55 and flange mounting variants extend suitability to harsher environments, while the 230 V supply and 75 kW rating support medium to large HVAC loads. This makes it ideal for retrofit projects and new builds in mechanical rooms.
Key specifications include a 75 kW (Pn), 276 A current, 230 V supply, and an IP21 enclosure with wall-mounting as standard. The device is designed for HVAC applications such as fans, pumps, and compressors, delivering reliable speed control and integrated HVAC features to support efficient operation and simplified commissioning.
Yes. The ACH580 HVAC drive is purpose-built for HVAC equipment, offering built-in control logic for fans, pumps, and compressors, plus an HVAC-specific settings menu. This makes it well-suited for air handling units and chillers, enabling smooth operation, energy efficiency, and straightforward startup, even in mission-critical installations.
The device comes with an IP21 enclosure by default, designed for wall-mount installation. ABB also offers IP55 and flange mounting options to accommodate more demanding environments. These protection ratings help ensure reliable performance in mechanical rooms and retrofit scenarios typical of HVAC installations.
The ACH580 reduces installation time through built-in HVAC features and an intuitive settings menu, while Bluetooth enables remote commissioning and monitoring. These capabilities cut on-site visits, minimize wiring errors, and improve energy efficiency, driving lower operating costs and faster payback in commercial and industrial HVAC projects.
