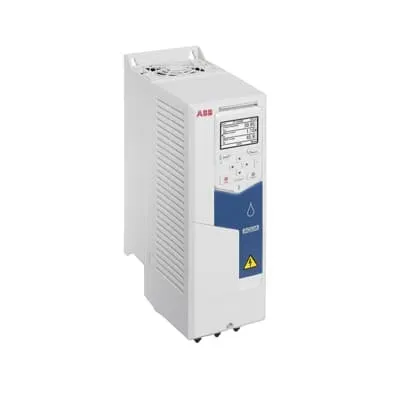

ABB 3AXD50000417957 LV AC wall-mounted drive - IP21
Part Number: 3AXD50000417957
Quick Summary
ABB 3AXD50000417957 LV AC wall-mounted drive is a compact pump controller designed for water and wastewater applications. It delivers precise motor control to optimize flow and energy use in pumping systems. Operators often struggle with energy waste, pump wear, and downtime, which this drive mitigates with sensorless flow calculation, level and multipump control, and protective features. With IP21 standard enclosure and optional IP55 or flange-mount configurations, this solution balances ruggedness and install flexibility. The built‑in energy calculator, intuitive Hand‑Off‑Auto interface, and Drive Composer PC tool streamline commissioning and monitoring, while enabling measurable business value through lower operating costs and extended equipment life. This makes ABB a trustworthy partner for utilities and industrial water projects.
Product Information
Extended Description
3AXD50000417957 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Sensorless flow calculation enables accurate pump performance monitoring without additional sensors, reducing installation costs and improving control accuracy for variable demand in water networks. This translates to measurable energy savings and less wear on impellers in municipal or industrial pumping stations. Application: water and wastewater pumping; Benefit: lowers energy bills while maintaining reliable flow rates. Feature → Business Impact → Application: Multipump control supports coordinated operation of several pumps, optimizing run-time sequencing and reducing start‑stop cycles, which cuts maintenance costs and extends pump life. Application: lift stations and treatment plants; Benefit: improved reliability during peak demand. Feature → Business Impact → Application: Level control and dry run protection guard against dry running and cavitation, protecting pumps and reducing unscheduled outages. Application: wells and elevated tanks; Benefit: longer equipment life and reduced service interruptions. Feature → Business Impact → Application: Soft pipe fill and quick ramps minimize surge and water hammer, safeguarding piping networks and seamless transitions between operating states. Application: filter and dosing lines; Benefit: smoother start-ups with fewer warranty claims. Feature → Business Impact → Application: Built‑in energy calculator visualizes potential savings from speed and torque optimization, supporting ROI justification. Application: regional distribution systems; Benefit: faster payback and justification for upgrades. Feature → Business Impact → Application: Intuitive Hand‑Off‑Auto panel and optional Bluetooth control simplify field adjustments and remote diagnostics. Application: service fleets; Benefit: reduced site visits and faster issue resolution. Feature → Business Impact → Application: Drive Composer PC tool facilitates commissioning, fault finding, and performance tuning, reducing engineering time. Application: new deployments; Benefit: faster project delivery and consistent configurations. Feature → Business Impact → Application: IP21 standard enclosure with IP55 and flange options provides installation flexibility in indoor and outdoor environments. Application: plant rooms and outdoor pump houses; Benefit: adaptable protection for diverse sites. Feature → Business Impact → Application: Small footprint wall-mounted design saves space in compact control rooms and retrofits easily into existing panels. Application: retrofits and new buildouts; Benefit: lower installation footprint and better utilization of space.
Get a Quick Quote for a ABB 3AXD50000417957
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000417957?
Enquire Now
FAQs
This model is designed as a wall-mounted LV AC drive with standard IP21 protection and supports optional IP55 and flange mounting configurations. It operates at 230 V AC and rated current of 6.7 A, delivering 1.1 kW of output. For a reliable installation, ensure proper wiring per IEC references, provide secure mounting on a clean surface, and verify compatible motors with the 1.1 kW rating to prevent overloading. Refer to the Drive Composer toolkit for wiring diagrams and parameter presets to match pump duty cycles.
Sensorless flow calculation estimates flow rate by analyzing motor performance and pump characteristics, eliminating the need for separate flow meters in many configurations. This reduces hardware cost, simplifies installation, and enables real-time monitoring of pump performance. In wastewater and water networks, it improves control accuracy during variable demand, supports energy optimization, and helps detect abnormal flow patterns early to prevent surge conditions.
Yes, the drive supports multipump control, allowing coordinated sequencing and optimization of several pumps. This reduces unnecessary pump starts and stops, lowers energy consumption, and extends motor and pump life. When designing a multi-pump setup, configure inter-pump sequencing in Drive Composer and use level control feedback to ensure smooth transitions between pumps based on demand and tank levels.
The base unit is IP21, suitable for indoor installation. Optional IP55 enclosure and flange-mount configurations provide protection for more demanding environments and alternative mounting arrangements. This flexibility makes it easier to integrate the drive into existing plant layouts, control rooms, or outdoor cabinets while maintaining proper protection for electrical components.
Expect reduced energy costs from optimized pump running, lowered maintenance due to dry run protection and smoother start-ups, and longer pump life from gentler ramps and protective features. The built‑in energy calculator and Drive Composer tool streamline commissioning and ongoing tuning, reducing engineering time and enabling rapid ROI justification for water/wastewater projects.
