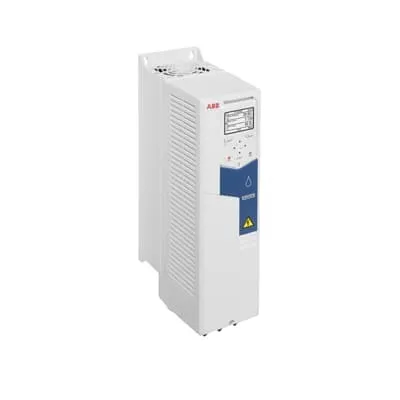

ABB 3AXD50000418008 LV AC Wall-Mounted Drive - IP21/IP55
Part Number: 3AXD50000418008
Quick Summary
ABB 3AXD50000418008 LV AC wall-mounted drive is designed to optimize pump performance in water and wastewater applications. Operators often struggle with energy waste, pump wear, and inconsistent control from older drives, which this solution helps mitigate with integrated features and intuitive operation. The device carries CE compatibility, standard IP21 enclosure, and optional IP55 or flange-mount variants for harsher environments, supporting safer, easier installation. By combining a built-in energy calculator with user-friendly interfaces like Hand-Off-Auto control and Drive Composer, it delivers measurable business value through reduced energy costs, improved reliability, and simpler commissioning—supporting both utilities and industrial pumping systems with enhanced control and visibility.
Product Information
Extended Description
3AXD50000418008 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation and multipump control → Business Impact: Optimizes pump performance and reduces instrumentation requirements, cutting capital and operating costs. Application: Municipal water networks and wastewater plants benefit from precise flow matching and reduced wear when multiple pumps alternate seamlessly. Long-tail keywords: sensorless flow, multipump control, energy-efficient pumping. Paragraph continues with practical context for integration into existing control schemes and SCADA interfaces.Feature: Level control, soft pipe fill, and dry run protection → Business Impact: Protects pumps from dry running, ensures accurate tank levels, and minimizes water hammer, extending equipment life and lowering maintenance costs. Application: Wastewater lift stations and treatment facilities needing reliable level regulation and pipe-fill management. Long-tail keywords: level control, dry run protection, soft-start piping.Feature: Quick ramps and impeller cleaning → Business Impact: Reduces surge, accelerates start-up, and keeps impellers clean, lowering op-ex and downtime. Application: High-cycle pumping with variable demands; ideal for fluctuating wastewater inflows. Long-tail keywords: quick ramp rates, impeller maintenance, pump protection.Feature: Built-in energy calculator and intuitive interfaces → Business Impact: Enables real-time energy monitoring and smarter setpoints, driving measurable savings and faster commissioning. Application: Utilities and industrial sites seeking compliance with energy programs and easier maintenance. Long-tail keywords: energy calculator, Drive Composer, Hand-Off-Auto, Bluetooth control panel.Feature: Enclosure versatility and installation options → Business Impact: Flexible mounting (wall, IP21 standard; IP55 option; flange mounting) supports diverse plant layouts and harsher environments without redesigns. Application: Water/wastewater facilities requiring adaptable installation and robust protection. Long-tail keywords: IP21 enclosure, IP55 option, wall-mounted drive, installation flexibility.
Get a Quick Quote for a ABB 3AXD50000418008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000418008?
Enquire Now
FAQs
For reliable installation, mount the drive on a clean, vibration-free wall within the IP21 enclosure by default, with proper clearance for heat dissipation and ventilation. Use the Hand-Off-Auto panel for local control and the Drive Composer PC tool for commissioning. Ensure wiring complies with local electrical codes and that input power matches 230 V nominal supply. Optional IP55 or flange mounting units can broaden site applicability in harsher environments.
The unit delivers up to 7.5 kW (Pn) with a listed current of 31.2 A at 230 V AC. It provides sensorless flow calculation, level and multipump control, soft pipe fill, and dry-run protection. These specs enable efficient, protected pumping in water and wastewater systems, supporting precise flow regulation and reduced energy usage across municipal and industrial applications.
Yes. The ACQ580-01 variant supports multipump control, enabling automatic sequencing and optimized pump selection based on demand, which improves energy efficiency and reduces mechanical wear. It is particularly beneficial in wastewater lift stations and treatment facilities where varying flow and level conditions require rapid, reliable pump switching without impacting system stability.
The drive is CE compliant for safe operation and meets standard enclosure ratings with IP21 as the baseline. Optional IP55 and flange-mount variants extend protection against dust and water ingress in tougher environments. Protective features such as dry-run protection and sensorless flow control contribute to safer operation and reduced risk of pump damage in challenging site conditions.
The built-in energy calculator helps quantify savings by analyzing flow and speed profiles, supporting ongoing optimization and regulatory reporting. Dry-run protection minimizes unscheduled maintenance, while sensorless control reduces sensor costs and points of failure. Together, these features shorten commissioning time, lower energy bills, and extend pump life in water and wastewater installations.
