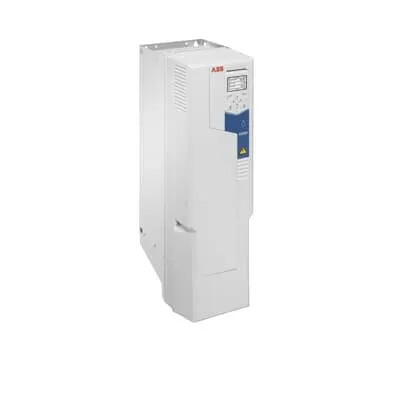

ABB 3AXD50000418039 LV AC Wall-Mounted Drive - IP21 Enclosure
Part Number: 3AXD50000418039
Quick Summary
The ABB LV AC wall-mounted drive is a compact, energy-efficient controller for water and wastewater pumping applications. Engineers often grapple with energy waste, pump wear, and unplanned downtime when using generic drives. This solution is CE-certified with IP21 enclosure as standard and offers optional IP55 and flange mounting for harsher environments, enabling reliable operation in municipal and industrial settings. By integrating sensorless flow calculation, multi-pump control, and energy visualization, it delivers measurable savings and streamlined maintenance. Used with the Drive Composer PC tool and an optional Bluetooth panel, it supports remote diagnostics, faster commissioning, and reduced total cost of ownership while aligning with sustainability goals in water management.
Product Information
Extended Description
3AXD50000418039 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation and multipump control. Business Impact: Optimizes pump sequencing and reduces energy consumption by tailoring flow to demand, lowering operating costs. Application: Municipal water supply and wastewater lift stations benefit from smoother pressure management and fewer peak loads. Feature: Level control and dry run protection. Business Impact: Prevents pump damage and extends equipment life, reducing maintenance costs and downtime. Application: Wet wells and basins where level fluctuations are common. Feature: Soft pipe fill and quick ramps. Business Impact: Minimizes water hammer and mechanical stress, protecting piping and valves while enabling rapid but controlled start-ups. Application: New installations and retrofits in treatment facilities. Feature: Impeller cleaning solution and integrated energy calculator. Business Impact: Keeps pumps clearer of debris, while quantified energy savings justify ROI for asset owners. Application: High-cycle pumps in constant operation. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Improves commissioning speed, field updates, and remote monitoring to reduce site visits. Application: Field service and factory integration across distributed water networks. Feature: IP21 standard enclosure with wall-mount capability; IP55 and flange mounting options. Business Impact: Offers installation flexibility for indoor plants and rugged outdoor enclosures, simplifying retrofits and compliance. Application: Plant-wide deployments with varying environmental requirements.
Get a Quick Quote for a ABB 3AXD50000418039
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000418039?
Enquire Now
FAQs
Yes. The ABB LV AC wall-mounted drive is designed for water and wastewater pumping, delivering 22 kW at 230 V with robust protection features. Its sensorless flow calculation, multipump control, and level management support reliable operation in municipal networks, while the standard IP21 enclosure provides safe indoor installation and straightforward integration with existing infrastructure.
IP21 is the standard enclosure for wall-mount installations, ideal for controlled indoor environments. If harsher conditions exist, IP55 protection is available, offering greater ingress protection and suitability for outdoor or wet areas. Flange mounting options further simplify integration into compact or constrained spaces, reducing cabinet footprint and easing retrofits.
Sensorless flow calculation optimizes pump speed to match actual demand, minimizing wasted head and throttling. Multipump control coordinates multiple impellers to balance loads, avoiding simultaneous peaks. Together, these features reduce kW per cubic meter of pumped fluid, lowering energy bills and extending motor life in continuous water and wastewater operations.
Yes. The drive offers Hand-Off-Auto control, a PC-based Drive Composer tool, and an optional Bluetooth control panel. These tools enable rapid commissioning, firmware updates, and remote diagnostics, which translate to fewer site visits, faster troubleshooting, and improved uptime for distributed pumping stations.
The built-in dry-run protection and surge-minimizing ramp profiles reduce pump wear and unexpected outages. The energy calculator visualizes savings, supporting business cases for retrofit projects. Combined with remote monitoring and easy integration, asset owners can expect lower maintenance costs, improved reliability, and a favorable return on investment over asset life.
