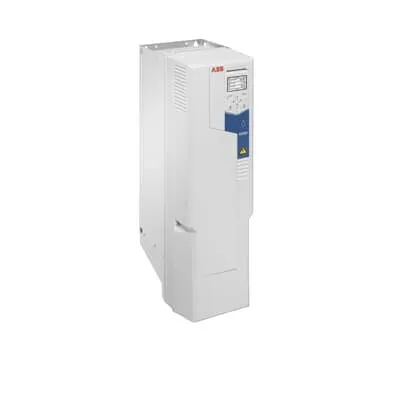

ABB ACQ580-01-115A-2 LV Drive - IP21 Enclosure
Part Number: 3AXD50000418046
Quick Summary
The ABB ACQ580-01-115A-2 LV drive for water and wastewater optimizes pump flow and energy use in municipal and industrial pumping. Operators often struggle with energy waste, dry-run events, and inconsistent pump sequencing that raise operating costs. The drive supports IP21 enclosure as standard, with IP55 and flange-mount variants to meet wet-environment demands. Together with an energy calculator and intuitive interfaces, it translates engineering intent into measurable ROI and reduced lifecycle costs. This solution is well-suited for water treatment plants, lift stations, and industrial process pumping, delivering long-term reliability and predictable performance through purpose-built pump controls and diagnostics.
Product Information
Extended Description
3AXD50000418046 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Sensorless flow calculation provides accurate flow estimates without external sensors, enabling precise pump control and significant energy savings in water and wastewater pumping. This reduces energy use across daily operations and supports compliance with efficiency targets in municipal systems and treatment facilities. Feature → Business Impact → Application: Multipump control and level control coordinate multiple pumps to prevent overflows, optimize duty cycles, and smooth demand peaks at lift stations, minimizing wear and maintenance while improving system availability. Feature → Business Impact → Application: Dry run protection, soft pipe fill, and quick ramps protect impellers and bearings from start-up shocks, extending pump life and reducing maintenance costs in demanding sewer networks and water systems. Feature → Business Impact → Application: Built-in energy calculator, Hand-Off-Auto control panel, and Drive Composer streamline commissioning and operator handovers, reducing training time and enabling data-driven decisions in daily operations. Feature → Business Impact → Application: Optional Bluetooth control panel and sensorless features simplify remote monitoring, enabling quick diagnostics and remote optimization for utilities and processing plants. Feature → Business Impact → Application: IP21 standard enclosure with IP55 and flange-mount options supports flexible installation in tight plant spaces, enabling compact wall-mounted layouts in retrofits and new builds while preserving protection in wet environments.
Get a Quick Quote for a ABB 3AXD50000418046
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000418046?
Enquire Now
FAQs
The ACQ580-01-115A-2 is a wall-mounted LV drive designed for wet environments, shipped with a standard IP21 enclosure. For harsher settings, IP55 enclosure variants and flange mounting options are available, enabling secure, space-efficient installations in compact control rooms or directly adjacent to pump equipment. Ensure proper enclosure rating, ventilation, and cabling clearances per ABB recommendations.
Key specs include a nominal power of 30 kW, 115 A, and 230 V AC input. It offers sensorless flow calculation, multipump control, level control, dry run protection, soft pipe fill, and quick ramps. An integrated energy calculator helps quantify savings, while Hand-Off-Auto control and Drive Composer support straightforward commissioning and ongoing optimization.
Yes. The ACQ580-01-115A-2 supports multipump control and level management, enabling coordinated sequencing across multiple pumps. This reduces peak currents, balances duty cycles, and prevents overflows, making it well-suited for lift stations, treatment plant inlets, and other multi-pump wastewater applications where reliability and efficiency are critical.
The standard IP21 enclosure provides basic protection for indoor, dry-well installations. For wet or dusty environments, IP55-rated variants and flange mounting options are available, offering higher ingress protection and installation flexibility. These configurations align with common industry practices for water and wastewater applications, helping maintain equipment reliability and uptime.
ROI is driven by measurable energy savings from the built-in energy calculator, reduced pump wear from dry run protection and soft-start features, and improved operational efficiency via intuitive interfaces. Ongoing maintenance is simplified by robust diagnostics, straightforward commissioning with Drive Composer, and remote monitoring options through Bluetooth control panels where applicable.
