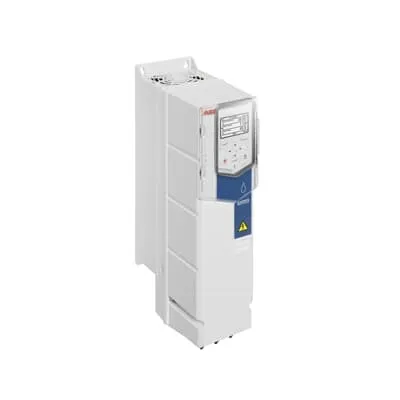

ABB 3AXD50000418145 LV AC Wall-Mounted Drive - IP21/IP55
Part Number: 3AXD50000418145
Quick Summary
ABB 3AXD50000418145 is a LV AC wall-mounted drive for water and wastewater pumps, delivering precise speed control. Operators face energy waste, frequent motor wear, and complex starts that disrupt process reliability. It is CE compliant with IP21 enclosure as standard, with IP55 and flange-mount options for harsher environments. Built-in pump features, an energy calculator, and intuitive control tools enable lower operating costs and easier maintenance across municipal and industrial applications.
Product Information
Extended Description
3AXD50000418145 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Sensorless flow calculation, multipump control, and level sensing are built into the drive. The business impact is lower energy use, reduced pump wear, and simplified system integration, which translates to lower maintenance costs. This is particularly effective in municipal water networks and wastewater pumping stations. Soft ramping, dry-run protection, and soft pipe fill help protect pumps from surge, minimize pressure shocks, and prevent impeller damage. The result is fewer unscheduled outages and smoother operation across the network. Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth simplify commissioning, remote diagnostics, and ongoing troubleshooting. The business impact is faster project delivery, reduced field service time, and improved site uptime for both new builds and retrofit projects. Standard IP21 enclosure supports wall mounting; IP55 and flange mounting options expand installation flexibility, reducing enclosure costs and easing integration with plant cabinets. The compact, robust design suits water/wastewater environments and constrained spaces. Integrated energy calculator visualizes savings and supports energy-management programs, enabling ROI tracking and real-time optimization. Quick ramps, dry-run protection, and pump-impeller cleaning features contribute to longer pump life and predictable performance in challenging networks.
Get a Quick Quote for a ABB 3AXD50000418145
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000418145?
Enquire Now
FAQs
Installation starts with selecting the standard IP21 enclosure for wall mounting. For harsher environments, IP55 and flange-mount options are available. Ensure a clean, dry mounting surface and proper clearance for heat dissipation. Use the Hand-Off-Auto panel or Drive Composer for initial parameterization, and verify electrical connections to the 230 V supply with a rated 24.5 A load.
The drive delivers sensorless flow calculation, multipump control, level sensing, and dry-run protection, addressing variable demand and pump reliability. Its soft-start ramp minimizes water hammer, while the integrated energy calculator helps quantify savings. Together, these features support municipal and industrial pumping stations by reducing energy use and extending pump life.
The unit is a 5.5 kW drive with 24.5 A current draw at 230 V AC. It is designed for LV networks and supports wall-mounted installation with IP21 protection, with IP55 and flange options. Compatibility extends with ABB’s ACQ580-01 family and related pump configurations, enabling seamless retrofit or new-build integration in water facilities.
The drive carries CE compliance for EU safety and performance standards and is offered with standard IP21 protection, with IP55 options to meet stricter environmental requirements. This combination supports regulatory expectations for water-wastewater projects and ensures reliable operation across municipal and industrial installations.
ROI is driven by measured energy savings from variable-speed control, reduced pump wear due to dry-run protection and soft-start ramps, and fewer maintenance visits thanks to sensorless monitoring and remote diagnostics via Drive Composer and Bluetooth options. The built-in energy calculator also aids in ongoing optimization and long-term lifecycle cost reduction.
