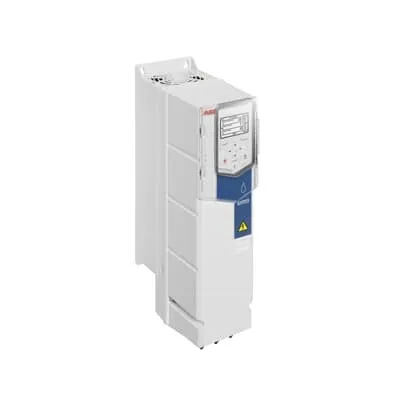

ABB 3AXD50000418152 ACQ580-01-032A-2+B056 - IP21 enclosure
Part Number: 3AXD50000418152
Quick Summary
ABB 3AXD50000418152 ACQ580-01-032A-2+B056 LV AC wall-mounted drive is optimized for water and wastewater pumping applications. In municipal and industrial systems, erratic flow and unexpected pump downtime can disrupt service and inflate operating costs. This drive rises to the challenge with built-in pump features and a compact form that fits tight spaces. It offers IP21 protection as standard, with IP55 variants and flange-mount options available to match harsh environments. Beyond protection, the unit integrates energy-saving tools and intuitive controls, including the Hand-Off-Auto panel, Drive Composer PC tool, and an optional Bluetooth control panel, helping technicians commission quickly and operators achieve reliable, efficient pumping.
Product Information
Extended Description
3AXD50000418152 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation that adapts to real-time system conditions. Business Impact: Reduces the need for external sensors, lowers maintenance costs, and improves energy efficiency. Application: Water and wastewater pumping stations seeking reliable, sensor-driven control. Feature: Multipump control for coordinated operation. Business Impact: Enables sequencing and load sharing across multiple pumps, reducing equipment wear and energy waste. Application: Municipal and industrial plants with standby or redundant pumping schemes. Feature: Level control and dry run protection. Business Impact: Protects pumps from running dry, minimizes unexpected shutdowns, and extends equipment life. Application: Wet well or reservoir applications with fluctuating liquid levels. Feature: Soft pipe fill and quick ramps. Business Impact: Minimizes water hammer and mechanical stress during start-up, lowering maintenance costs. Application: New installations and retrofits in municipal networks. Feature: Built-in energy calculator and intuitive controls (Hand-Off-Auto panel, Drive Composer, optional Bluetooth). Business Impact: Quantifies energy savings, accelerates commissioning, and simplifies field startup. Application: Engineering teams optimizing lifecycle costs and operators needing straightforward day-to-day operation. Feature: IP21 standard enclosure with IP55 and flange-mount options. Business Impact: Flexible installation for wall-mounting in controlled spaces or harsher environments, improving space utilization and serviceability. Application: Indoor plant rooms, pump houses, and retrofit projects in water/wastewater facilities.
Get a Quick Quote for a ABB 3AXD50000418152
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000418152?
Enquire Now
FAQs
This LV AC wall-mounted drive is designed for straightforward wall installation in water and wastewater facilities. The standard IP21 enclosure provides basic protection, while IP55 options and flange-mount variants are available for harsher environments. Ensure adequate clearance for cooling and access to the Hand-Off-Auto panel and optional Bluetooth control panel during commissioning.
Sensorless flow calculation estimates flow dynamics without additional external sensors, reducing hardware count and maintenance while optimizing pump speed and head match. In water and wastewater plants, this translates to more stable flow, lower energy consumption, and fewer sensor-related failures, especially in variable-load scenarios.
Yes, the ACQ580-01-032A-2+B056 includes multipump control capabilities, enabling coordinated operation across several pumps. This reduces cycling, balances load across units, and improves system reliability in applications like wastewater lift stations or municipal pumping stations, where demand can vary significantly.
The standard enclosure is IP21, suitable for controlled indoor spaces. IP55 and flange-mount variants are available for more demanding environments or alternative mounting arrangements. The design supports wall mounting and integration with handy control interfaces, ensuring flexible deployment in typical water and wastewater facilities.
The integrated energy calculator helps quantify energy savings from driver optimization, aiding ROI analyses. Features like dry run protection, soft pipe fill, and quick ramps reduce wear, maintenance costs, and downtime. With the Drive Composer tool and optional Bluetooth panel, commissioning is faster, driving shorter project timelines and lower lifecycle costs.
