ABB 3AXD50000418183 Motors & Drives - IP21 Enclosure
Part Number: 3AXD50000418183
Quick Summary

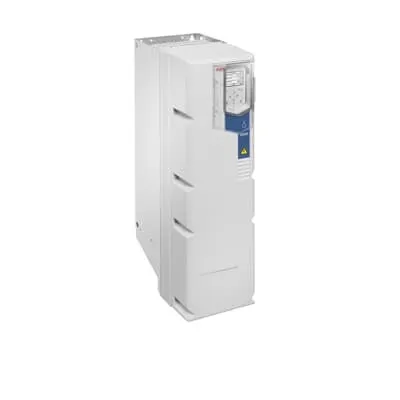

ABB 3AXD50000418183 is a LV AC wall-mounted drive for water and wastewater pumping applications. Operators often battle energy waste, fluctuating flow, and equipment wear when managing pumps in municipal and industrial plants. This drive ships with IP21 protection and offers IP55 option, plus built-in pump features such as sensorless flow calculation, multipump control, and level protection. Designed for field deployment with a compact footprint and straightforward integration using the Drive Composer PC tool and optional Bluetooth interface. End users gain faster mean time to repair and reduced total cost of ownership. This combination supports compliant operation in critical municipal plants and ensures reliable performance under variable loads.
Product Information
Extended Description
3AXD50000418183 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
The built-in pump application features include sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a pump-impeller cleaning solution. These capabilities reduce energy waste, minimize pump wear, and lower maintenance intervals, translating to lower operating costs. The drive is ideal for water and wastewater pumping where multiple pumps operate in tandem or with varying demand. The control interface integrates Hand-Off-Auto operation, the Drive Composer PC tool, and an optional Bluetooth control panel, enabling faster commissioning, easier diagnostics, and remote adjustments. An integrated energy calculator visualizes energy savings and supports ROI justification, helping engineers justify upgrades during audits and retrofits. The unit is designed for field deployment with a compact footprint and straightforward integration, ensuring that retrofit projects and new builds can proceed with minimal site disruption. This setup accelerates mean time to repair and reduces total cost of ownership, especially in facilities with fluctuating pumping profiles.
Get a Quick Quote for a ABB 3AXD50000418183
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000418183?
Enquire Now
FAQs
The 3AXD50000418183 is a wall-mounted LV AC drive designed for plant integration. It supports 230 V networks and 89 A current, with a 22 kW rating. It ships standard with IP21 protection and can be upgraded to IP55, making it compatible with common water and wastewater installations and integrating smoothly with ABB Drive Composer and Hand-Off-Auto control schemes.
Key specs include 22 kW nominal power, 89 A current, 230 V AC supply, and a compact wall-mount footprint. It provides sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, and quick ramps. Optional features include IP55 protection and flange mounting units for enhanced installation flexibility.
Yes. The built-in pump application features are specifically designed for water and wastewater pumping. Multipump control, level management, and dry run protection support reliable operation in municipal and industrial plants with varying demand, reducing energy use and protecting pumps against dry running and cavitation during start-up and peak flows.
The model provides IP21 standard enclosure protection, with an IP55 option available for harsher environments. Installation is designed for wall mounting, and optional flange mounting units extend mounting flexibility. No CE or SIL claims are specified in the provided data; the emphasis is on IP protection and rugged, pump-focused functionality.
Expect reduced maintenance due to dry run protection and smoother start-ups from quick ramps, which lowers wear on impellers and motors. The energy calculator helps quantify energy savings, enabling faster ROI analyses. Commissioning is streamlined via Drive Composer and the Hand-Off-Auto interface, reducing downtime during retrofit projects and new installations.
