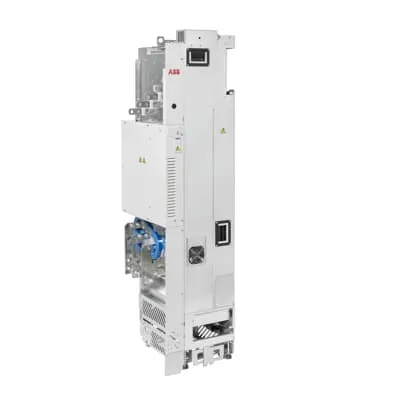

ABB 3AXD50000428168 LV AC drive module - Ultra-low THDi
Part Number: 3AXD50000428168
Quick Summary
ABB 3AXD50000428168 LV AC drive module controls HVAC fans, pumps, and compressors. Harmonics and energy waste in HVAC installations frequently erode efficiency and shorten equipment life. It’s CE compliant and available in IP00 standard with an IP20 option, enabling flexible cabinet or service-entry installation. The built‑in active supply unit and low‑harmonic filter simplify commissioning, while ultra-low THDi performance reduces electrical stress on the broader system. With predictable control of variable-speed motors, it delivers faster payback, lower maintenance needs, and better alignment with energy-efficiency programs. This combination supports HVAC reliability and scalable capacity across mid-size to large installations.
Product Information
Extended Description
3AXD50000428168 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The ultra-low drive module variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations.
The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP00 enclosure as standard and for cabinet installation Also, IP20 enclosure is available.
Built-in active supply unit and integrated low-harmonic line filter deliver power quality without requiring external filters or multi-pulse arrangements, reducing installation time and BOM complexity. This directly lowers project costs and accelerates commissioning for HVAC projects, including air-handling units and chillers. The ultra-low THDi < 3% performance mitigates harmonic distortion, protecting electrical infrastructure, improving power factor, and enabling compliance with utility guidelines. Output voltage boost and built-in PF correction help sustain motor performance during variable loads, reducing motor wear and energy waste. IP00 enclosure is the standard option with IP20 available for cabinet-based installations, increasing installation flexibility in data centers and mechanical rooms. The HVAC-specific control panel and optional Bluetooth capability streamline commissioning and remote monitoring, supporting maintenance teams and building managers. Compatibility with ABB ACH580 HVAC drives enhances retrofit viability and future-proofing for building portfolios.
