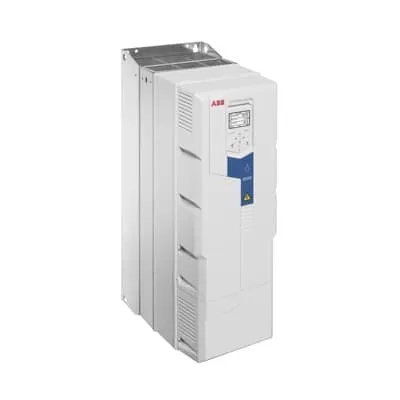

ABB 3AXD50000428779 LV AC Wall-Mounted Ultra-Low Harmonic Drive - IP21
Part Number: 3AXD50000428779
Quick Summary
ABB 3AXD50000428779 is a LV AC wall-mounted ultra-low harmonic drive designed for water and wastewater pumping. It reduces harmonic distortion and energy waste while simplifying installation in tight spaces. The unit ships with UL and CE certifications and standard IP21 protection, with IP55 and flange mounting options available for harsher environments. Built-in features such as a low harmonic line filter, an active supply unit, and pump-specific controls accelerate commissioning and improve reliability. User-friendly interfaces like Hand-Off-Auto, Drive Composer, and an optional Bluetooth panel support remote monitoring, maintenance, and faster response to plant dynamics, delivering measurable reductions in operating costs and lifecycle risk.
Product Information
Extended Description
3AXD50000428779 ABB: The ACQ580-31 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers.
Other features include output voltage boost and power factor correction. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The ultra-low harmonic wall-mounted variant comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Feature: Ultra-low harmonic design with integrated low harmonic line filter → Business Impact: Reduces THDi to less than 3%, improving grid compliance and reducing requirements for external harmonic mitigation → Application: Water treatment and wastewater pumping stations where grid quality limits are strict. Feature: Built-in active supply unit and IP21 enclosure → Business Impact: Simplifies installation, lowers BOM, and shortens commissioning time → Application: Wall-mounted installations in plant basements or outdoor-rated indoor spaces with standard protection. Feature: Sensorless flow calculation and pump application functions (multipump control, level control, soft pipe fill) → Business Impact: Improves process control, reduces pump wear, and yields energy savings through optimized ramping and dry-run protection → Application: Multi-pump skid systems and lift stations. Feature: Quick ramps, dry run protection, and level monitoring → Business Impact: Protects pumps from dry running, extends seal life, and stabilizes flow → Application: High-demand water networks and distribution loops. Feature: Hand-Off-Auto, Drive Composer, and optional Bluetooth control panel → Business Impact: Accelerates commissioning, simplifies maintenance, and enables remote diagnostics → Application: Field service, utilities, and plant operations seeking reduced downtime and faster problem resolution. Feature: IP21 standard with IP55 and flange options → Business Impact: Installation flexibility across facility layouts and exposed environments while preserving protection levels → Application: Industrial water facilities requiring adaptable mounting and environmental protection. Long-tail keywords integrated include ultra-low harmonic drive, low harmonic line filter, sensorless flow calculation, multipump control, dry run protection, and Drive Composer for ABB pump applications.
Get a Quick Quote for a ABB 3AXD50000428779
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000428779?
Enquire Now
FAQs
Yes. The drive is designed for 400 V networks and provides an integrated low harmonic filter, simplifying installation by eliminating the need for external filters in typical water/wastewater applications.
The ultra-low harmonic variant delivers THDi of less than 3%, helping meet grid standards and reducing the need for additional harmonic mitigation equipment.
Yes. It supports multipump control and sensorless flow calculation, enabling coordinated operation, level control, and protection features for multi-pump pumping stations.
The product carries UL listing and CE marking, with standard IP21 protection; IP55 and flange mounting options are available for enhanced environmental protection.
Benefits include reduced harmonic mitigation hardware, easier commissioning with Drive Composer, and improved pump reliability from dry-run protection and soft-starts, driving lower energy use and longer service intervals.
