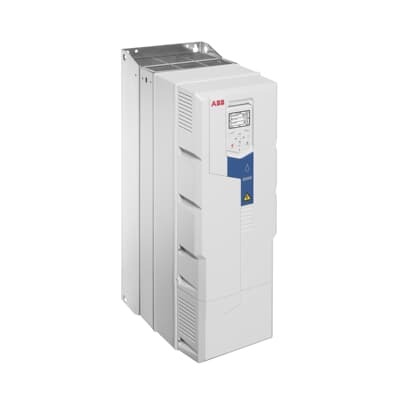

ABB 3AXD50000428946 AC Drive - Ultra-Low Harmonic
Part Number: 3AXD50000428946
Quick Summary
ABB 3AXD50000428946 is an LV AC wall-mounted ultra-low harmonic drive designed for water and wastewater pumping systems. For operators, harmonic distortion, energy waste, and complex multi-pump control are persistent challenges that impact reliability and operating costs. This UL-rated drive ships with IP21 enclosure as standard, with UL-listed options and IP55/flange-mount variants available. The solution integrates Drive Composer compatibility and a Bluetooth panel, delivering streamlined commissioning, remote monitoring, and improved lifecycle economics for plant operators and maintenance teams.
Product Information
Extended Description
3AXD50000428946 ABB: The ACQ580-31 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers.
Other features include output voltage boost and power factor correction. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The ultra-low harmonic wall-mounted variant comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Ultra-low harmonic performance is achieved with THDi reaching well below 3%, delivering superior power quality and enabling reduced transformer sizing and lower utility penalties. Business impact: energy efficiency improvements and compliance with low-harmonic guidelines, leading to lower operating costs. Application: ideal for water and wastewater pumping where continuous duty and grid friendliness matter. The drive includes an integrated active supply unit and low harmonic line filter, eliminating the need for external filters or complex multi-pulse arrangements. Business impact: simplified installation, reduced cabinet footprint, and lower upfront capital expenditure. Application: retrofit or new builds in compact plant rooms. Built-in pump application features — sensorless flow calculation, multipump control, level control, soft pipe fill, and dry-run protection — enhance reliability and reduce wear. Business impact: smoother start/stop sequences, better process control, and extended pump life. Application: clean-water or wastewater transfer with varying load profiles. Quick ramps and fault-tolerant operation minimize downtime, while PF correction improves overall efficiency. Application: variable-speed pump stations with fluctuating demand. User-focused tools, including Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth control panel, shorten commissioning time and simplify maintenance. Business impact: faster ROI, easier troubleshooting, and safer operations. Application: field deployment across facilities with mixed automation ecosystems. The compact wall-mount design with IP21 standard and IP55 options provides flexible installation in tight spaces, enabling safer, more reliable control in both new and retrofit projects.
