ABB 3AXD50000428960 Motors & Drives - Ultra-low THDi <3%
Part Number: 3AXD50000428960
Quick Summary

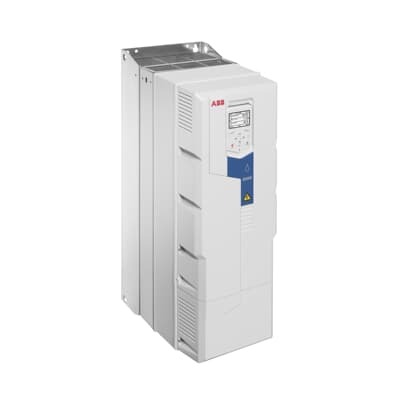

ABB 3AXD50000428960 is a LV AC wall-mounted ultra-low harmonic drive for water and wastewater pumping. This solution helps utilities reduce harmonic distortion and energy waste, addressing issues such as noise, voltage fluctuations, and premature motor wear in demanding pumping stations. The drive is designed with robust industry certifications in mind, including an IP21 standard enclosure and UL-listed safety, with IP55 options available for harsher environments. By combining integrated components with intuitive configuration tools, it delivers reliable performance in municipal water, wastewater treatment, and industrial pumping applications. The result is lower lifecycle costs, easier installation, and predictable, efficient operation across varied flow conditions.
Product Information
Extended Description
3AXD50000428960 ABB: The ACQ580-31 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers.
Other features include output voltage boost and power factor correction. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The ultra-low harmonic wall-mounted variant comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Feature: Ultra-low harmonic performance with THDi <3% and an integrated low harmonic line filter. Business Impact: Improves power quality and reduces energy waste, lowering utility penalties and extending motor life. Application: Municipal pumping and industrial water handling where harmonic mitigation is critical. Feature: Output voltage boost and power factor correction inside a compact wall-mounted unit. Business Impact: Increases pump efficiency and reduces upstream AC bus losses, enabling sustained head and flow without oversizing equipment. Application: Variable-speed pump trains and lift stations feeding large distribution networks. Feature: Built-in pump application functionality including sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Business Impact: Enhances process reliability, minimizes water hammer, and cuts maintenance cycles. Application: Sewage lift stations and process water systems. Feature: User interface and tooling via Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth panel. Business Impact: Speeds commissioning, eases troubleshooting, and supports remote monitoring. Application: Field service and remote plant operations. Feature: Space-efficient LV drive with IP21 standard enclosure and available IP55/flange mounting. Business Impact: Simplifies retrofits, reduces installation time, and improves suitability for wet environments. Application: New builds or upgrades in compact pump rooms where footprint matters.
Get a Quick Quote for a ABB 3AXD50000428960
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000428960?
Enquire Now
FAQs
This drive is designed for 480 V supply and 44 A applications with a 30 HP rating. It comes in an IP21 enclosure as standard and can be upgraded to IP55 or flange-mounted configurations. Plan for proper ventilation and vibration isolation, as well as correct wiring of the integrated line filter and control wiring to the Hand-Off-Auto panel or Drive Composer tool for straightforward commissioning.
A THDi below 3% significantly reduces harmonic distortion on the electrical network, improving power quality, reducing overheating and wear on pumps and transformers, and potentially lowering energy costs. The integrated low harmonic line filter eliminates the need for external filters or multi-pulse arrangements, simplifying installation and maintenance.
Yes. The drive supports built-in pump application functionality such as multipump control, sensorless flow calculation, and level control, enabling coordinated operation of multiple pumps. This reduces peak demand, improves process reliability, and simplifies control logic for complex pumping schemes in water and wastewater facilities.
The drive is UL-listed for safety and ships with an IP21 enclosure as standard, with IP55 and flange-mount options available. It is designed to meet low-harmonic standards and is compatible with ABB’s Drive Composer PC tool for configuration and monitoring, supporting reliable field deployments in wet environments.
Benefits include energy savings from improved efficiency and reduced motor losses, lower maintenance due to integrated line filtering and protective features like dry run protection, and faster commissioning via intuitive interfaces and software. The result is shorter project timelines, fewer external components, and predictable operating costs in water and wastewater pumping systems.
