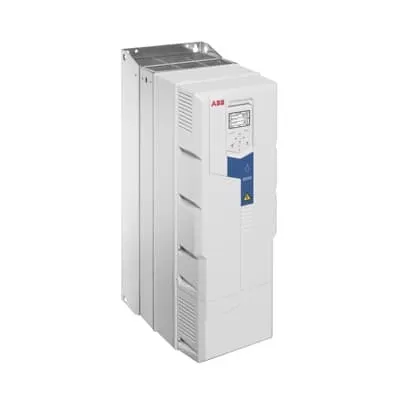

ABB 3AXD50000428977 AC Drive - Ultra-low THDi <3%
Part Number: 3AXD50000428977
Quick Summary
ABB 3AXD50000428977 ultra-low harmonic AC drive delivers precise motor control for water and wastewater pumping. Engineers confront harmonic distortion, energy waste, and maintenance costs in pumping networks, and this drive mitigates those issues with an integrated low harmonic filter and advanced pump features. UL-listed for reliability with 40 Hp, 52 A, 480 V, the unit comes in a standard IP21 enclosure with IP55 options to suit field conditions. Coupled with intuitive Hand-Off-Auto control and the Drive Composer PC tool, it delivers measurable business value through energy savings, simplified installation, and easier system integration.
Product Information
Extended Description
3AXD50000428977 ABB: The ACQ580-31 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers.
Other features include output voltage boost and power factor correction. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The ultra-low harmonic wall-mounted variant comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Feature: Ultra-low harmonic design achieving THDi under 3% reduces electrical stress and improves power quality. Impact: Lower harmonics mean better motor efficiency, reduced transformer and breaker loading, and longer equipment life. Application: Water and wastewater pumping stations where power quality is critical and regulatory compliance is strict. Feature: Built-in active supply unit and integrated low harmonic line filter. Impact: Eliminates the need for external filters or multi-pulse arrangements, reducing panel footprint and installation costs. Application: Compact pump stations and retrofit projects with limited space. Feature: Output voltage boost and power factor correction. Impact: Improves motor efficiency and grid performance, enabling tighter control of flow with lower energy losses. Application: Municipal pumping grids and process water systems requiring stable voltage support. Feature: Pump-specific functionality including sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Impact: Enhances control accuracy, protects pumps against dry running, and enables smooth transitions between pumps. Application: Large-wastewater lift stations and multi-pump configurations. Feature: Quick ramps, impeller cleaning solution, and intuitive Hand-Off-Auto control with Drive Composer PC tool and optional Bluetooth panel. Impact: Faster commissioning, reduced maintenance downtime, and better operator usability. Application: Field deployments across utilities and industrial plants seeking reliable, user-friendly control. Feature: Enclosure options IP21 standard with IP55 variants. Impact: Provides appropriate protection in indoor cabinets or harsher outdoor environments, enabling flexible installation. Application: Wall-mounted drives in plant rooms and outdoor enclosures with mounting flexibility.
Get a Quick Quote for a ABB 3AXD50000428977
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000428977?
Enquire Now
FAQs
The ABB 3AXD50000428977 is designed as a wall-mounted LV AC drive with ultra-low harmonic performance (THDi <3%), built-in low harmonic filtration, and integrated pump-specific features like sensorless flow calculation and dry run protection. This combination reduces electrical disturbances, enhances reliability in water and wastewater networks, and supports energy-efficient, stable pumping operations in municipal and industrial settings.
Installation is streamlined by the integrated active supply unit and low harmonic line filter, which minimizes external components. The device is standard IP21 and available in IP55 variants, allowing placement in plant rooms or harsher environments. Wiring follows common VFD practices for 480 V systems, with Hand-Off-Auto control as a user interface option and Drive Composer for configuration.
Key specs include 40 Hp output, 52 A current, 480 V supply, THDi < 3% for ultra-low harmonic performance, and a compact wall-mounted form factor. It includes an integrated low harmonic filter, voltage boosting, and power factor correction. Compatibility with sensors and multi-pump configurations makes it well-suited for municipal and industrial pumping applications.
Water utilities, wastewater treatment plants, and process industries with critical pumping requirements benefit the most. The ultra-low harmonic design minimizes electrical stress on transformers and switchgear, improves energy efficiency, and supports compliant power quality in distribution networks, especially where multiple pumps operate in parallel or across long intake and discharge lines.
ROI is driven by energy savings from improved power factor and reduced harmonic losses, plus lower maintenance due to dry run protection and sensorless control. The integrated features reduce the need for external filters and complex configurations, cutting installation time and spare-parts inventory. Overall, the drive lowers total cost of ownership in water and wastewater pumping applications.
