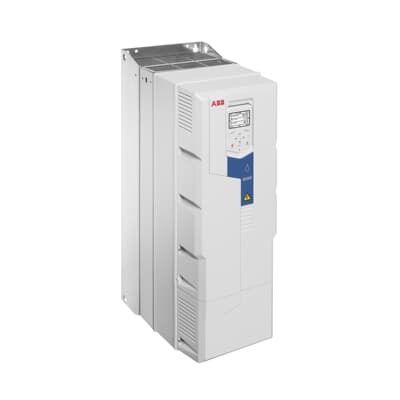

ABB 3AXD50000428984 Drive - Ultra-low Harmonics UL 50 HP
Part Number: 3AXD50000428984
Quick Summary
ABB 3AXD50000428984 Drive is a compact LV AC controller for water and wastewater pumping. Operators often wrestle with harmonic distortion, energy waste and space constraints in compact plants and municipal stations. This ultra low harmonic variant delivers THDi well under 3 percent, with an integrated low harmonic line filter and IP21 enclosure, while optional IP55 or flange mounting broadens installation options. The drive also supports intuitive commissioning and control via Hand-Off-Auto panels, Drive Composer, and an optional Bluetooth panel. By combining strong harmonic suppression with robust pump control and a small footprint, this solution translates into lower operating costs and greater system reliability for water utilities and wastewater facilities.
Product Information
Extended Description
3AXD50000428984 ABB: The ACQ580-31 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers.
Other features include output voltage boost and power factor correction. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The ultra-low harmonic wall-mounted variant comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Feature is ultra low harmonic performance with an integrated low harmonic line filter. Business impact is dramatically reduced harmonic distortion and elimination of external filters, enabling compliant operation in water and wastewater applications. Application is municipal pumping stations and plant networks where space is at a premium and electrical noise must be minimized. Feature is output voltage boost and power factor correction. Business impact includes improved motor efficiency and grid stability, reducing energy waste during varying flow conditions. Application covers long piping runs and lift stations where voltage sags can affect pump performance. Feature is built in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill and dry run protection. Business impact includes optimized pump sequencing, reduced mechanical wear and lower maintenance costs. Application fits multi-pump systems and water treatment lines. Feature is compact wall mounted design with IP21 standard and options for IP55 and flange mounting. Business impact includes simplified integration into compact control cabinets and easier retrofits. Application is in space constrained facilities. Feature is intuitive user interface options including Hand Off Auto control panel, Drive Composer PC tool and optional Bluetooth control panel. Business impact includes faster commissioning, easier troubleshooting and remote support. Application spans new builds and retrofits across water and wastewater infrastructure.
Get a Quick Quote for a ABB 3AXD50000428984
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000428984?
Enquire Now
FAQs
This drive is designed for LV AC pumping applications and supports wall mounting with IP21 standard enclosures. Optional IP55 and flange mounting options expand compatibility with compact control cabinets and retrofit projects, while the integrated filter eliminates the need for external harmonic management components.
The drive delivers THDi below 3 percent, reducing harmonic distortion that can affect pumps and sensors. It includes an integrated low harmonic line filter, removing the requirement for external filters or complex multi-pulse arrangements, which simplifies installation in wastewater plants.
Sensorless flow calculation optimizes pump speed based on system demand, while multipump control enables sequencing and coordination of multiple pumps. This reduces energy use, minimizes water hammer, and extends impeller life in variable flow conditions common in municipal networks.
The drive is UL listed and features an IP21 standard enclosure with optional IP55 and flange options. It is designed to meet low harmonic standards for pumping applications, while providing protection features such as dry run protection and level control for reliable operation.
ABB provides the Hand-Off-Auto control panel, Drive Composer PC tool for configuration and diagnostics, and an optional Bluetooth control panel. These tools enable quick setup, remote troubleshooting, and straightforward tuning for site changes or fleet deployments.
