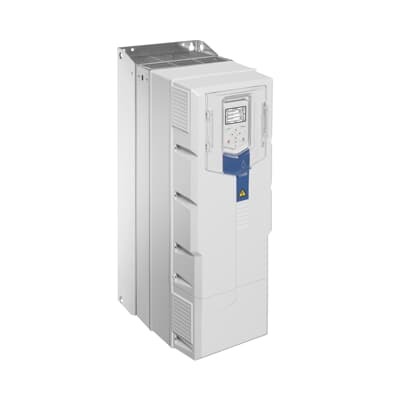

ABB 3AXD50000429998 AC Drive - Ultra-low harmonic THDi <3%
Part Number: 3AXD50000429998
Quick Summary
ABB 3AXD50000429998 AC Drive delivers ultra-low harmonic control for water and wastewater pumping systems. High harmonic distortion can shorten pump life, waste energy, and complicate regulatory compliance. This drive supports CE marking and standard IP21 enclosures, with IP55 and flange-mount options available to match plant layouts. By combining an integrated low-harmonic filter with a built-in supply unit, it eliminates the need for external filters or complex transformer arrangements. The Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth panel simplify commissioning and startup, helping maintenance teams reduce downtime and capitalise on energy savings across your pumping infrastructure. This combination supports safer, compliant operations.
Product Information
Extended Description
3AXD50000429998 ABB: The ACQ580-31 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The ultra-low harmonic wall-mounted variant comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Feature: Ultra-low harmonic performance with THDi <3% and integrated filter. Business Impact: Reduces harmonic distortion and energy waste, removing the need for external filters and multi-pulse arrangements. Application: Water and wastewater pumping stations seeking compact, compliant drives with simplified installation. Feature: Built-in active supply unit and integrated low harmonic line filter. Business Impact: Cuts CAPEX and installation time by eliminating separate filters and transformers. Application: New-build and retrofit projects in municipal and industrial pumping. Feature: Pump-specific functions such as sensorless flow calculation, multipump control, and level control. Business Impact: Improves process control, reduces pump cycling, and enhances energy efficiency. Application: Variable flow applications in treatment plants. Feature: Protection and usability features including dry run protection, quick ramps, impeller cleaning, Hand-Off-Auto, Drive Composer, and Bluetooth option. Business Impact: Minimizes pump damage, accelerates commissioning, and lowers maintenance costs. Application: Reliable operation in demanding water/wastewater environments. Feature: Enclosure flexibility with IP21 standard and IP55 options plus flange mounting. Business Impact: Easier integration in compact spaces and diverse plant layouts. Application: Wall-mounted installations in confined spaces.
Get a Quick Quote for a ABB 3AXD50000429998
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000429998?
Enquire Now
FAQs
The 3AXD50000429998 is a wall-mounted LV drive with an integrated low-harmonic filter and built-in supply unit, reducing external hardware needs. It supports Hand-Off-Auto operation, Drive Composer for commissioning, and is compatible with standard ABB motor configurations used in water and wastewater pumping stations.
The ultra-low harmonic variant delivers THDi below 3%, minimizing harmonic distortion, protecting pumps from premature wear, and enabling simpler compliance with low-harmonic standards. The integrated filter means no external filters or multi-pulse systems are required, saving space and costs.
The drive comes with CE marking for European compliance and standard IP21 enclosure protection. IP55 mounting options and flange-mount variants are available to suit harsher environments and tighter plant layouts.
Sensorless flow calculation enables precise flow control without external sensors, while multipump control coordinates multiple pumps for stable pressure and energy savings. These features yield smoother operation, reduced cycling, and better process stability in treatment plants.
With an integrated filter and protection features like dry run protection and quick ramps, maintenance burdens are reduced and pump wear is minimized. Drive Composer support accelerates commissioning, shortening downtime and delivering faster payback in municipal or industrial pumping projects.
