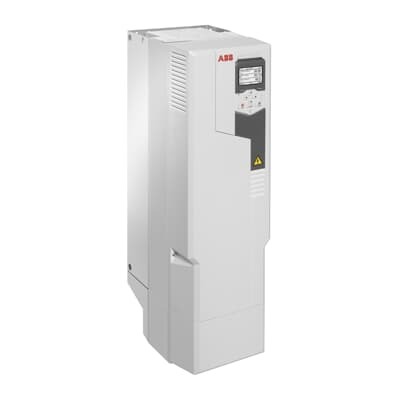

ABB 3AXD50000462445 ACS580 Packaged Drive - UL Listed, 30 HP
Part Number: 3AXD50000462445
Quick Summary
ACS580 Packaged Drive is an ABB LV AC motor controller for packaged equipment and light manufacturing lines. Engineers often struggle with wiring complexity, safety compliance, and slow commissioning in boxed drives. Key certifications include UL-listed safety and a NEMA Type 1 enclosure, with optional 12 or 3R configurations for harsher environments. As a compact, integrated drive with a door-mounted disconnect and graphical control panel, it accelerates installation, improves safety, and reduces downtime. This solution also supports external control connections and serial communications, delivering a solid foundation for scalable automation and energy-efficient motor control in your plant.
Product Information
Extended Description
3AXD50000462445 ABB: The ACS580-0P Packaged Drive includes an ACS580 drive in a UL (NEMA) Type 1 as standard, or optional 12 or 3R enclosure with either an input disconnect switch and fast acting fuses or an input circuit breaker. It is available from 1 to 350 hp at 230/460/575 V. The ACS580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: Door-mounted input disconnect switch, padlockable in OFF, with UL (NEMA) Type 1 enclosure. Benefit: Improves operator safety and lockout/tagout reliability, simplifying compliance during maintenance. Application: Suitable for packaged equipment and conveyors in manufacturing environments. Feature: Electronic motor overload protection built into the drive. Benefit: Prevents motor damage during startup and overload events, reducing unplanned downtime and maintenance costs. Application: Essential for high-inertia loads on packaging lines. Feature: Door-mounted control panel with graphical display. Benefit: Streamlines commissioning, diagnostics, and local control, shortening start-up times. Application: Quick parameter setup for line start-ups and line downtime troubleshooting. Feature: External control connections and serial communications capability. Benefit: Enables seamless PLC integration and networked monitoring, boosting process visibility and control. Application: Integrated factory automation and remote diagnostics. Feature: Wide horsepower and voltage range (1–350 HP at 230/460/575 V). Benefit: Provides a single family to cover a broad motor portfolio, reducing part numbers and sourcing complexity. Application: Used across conveyors, mixers, and packaging machinery. Feature: Optional 12 or 3R enclosure variants. Benefit: Extends suitability to more demanding environments and installation layouts, protecting the drive in harsher conditions. Application: Harsh factory floors and outdoor installations with appropriate protection.
Get a Quick Quote for a ABB 3AXD50000462445
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000462445?
Enquire Now
FAQs
The drive ships in a UL Type 1 enclosure by default with an integrated door-mounted input disconnect. Optional 12 or 3R enclosure variants are available to support harsher environments or specific installation requirements, allowing for enhanced protection and compliance in different settings.
The ACS580 Packaged Drive covers a broad range from 1 to 350 HP at 230/460/575 V. The 30 HP configuration in this packaged variant is rated at 88 A at 240 V, providing robust motor control for common packaging and material handling applications.
Yes. Its integrated disconnect, motor overload protection, local control panel, and serial communications make it ideal for packaging lines, conveyors, and other line equipment, enabling compact panel layouts and straightforward PLC integration.
The drive is UL Listed and configured for a NEMA Type 1 enclosure by default. Optional enclosure variants (12 or 3R) expand suitability for more demanding environments. CE compliance and IP ratings may be considered with enclosure configurations depending on regional requirements.
Integrated overload protection and a graphical control panel reduce maintenance events and commissioning time. The compact, packaged design saves panel space, lowers installation costs, and, with reliable motor control, improves energy efficiency and uptime across production lines.
