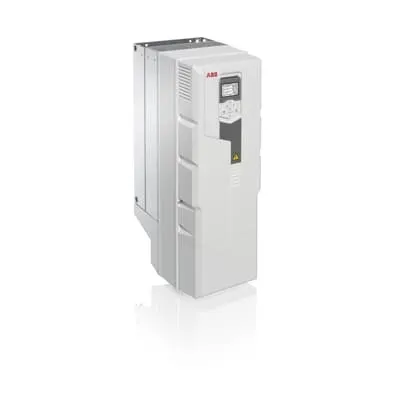

ABB 3AXD50000462469 ACS580 Packaged Drive - UL Type 1
Part Number: 3AXD50000462469
Quick Summary
The ABB ACS580 Packaged Drive is a LV AC motor drive with a disconnect, ideal for OEM and plant automation. Installers often face crowded control panels and wiring errors when integrating drives from scratch. The unit ships UL Type 1 compliant, with optional 12 or 3R enclosures, and includes electronic motor overload protection. This combination delivers safer maintenance, faster commissioning, and scalable control for a range of equipment. In addition to core drives features, it supports local and serial communications, improving integration with PLCs and SCADA. This translates to reduced engineering time, lower panel heat, and stronger uptime in manufacturing lines.
Product Information
Extended Description
3AXD50000462469 ABB: The ACS580-0P Packaged Drive includes an ACS580 drive in a UL (NEMA) Type 1 as standard, or optional 12 or 3R enclosure with either an input disconnect switch and fast acting fuses or an input circuit breaker. It is available from 1 to 350 hp at 230/460/575 V. The ACS580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
The packaged drive combines a UL Type 1 enclosure with a built‑in input disconnect and fast-acting fuses or an input circuit breaker, reducing wiring complexity and simplifying a compliant control panel setup. The safety-focused disconnect enables lockout/tagout during maintenance, cutting the risk of accidental energization and supporting OSHA-like requirements in busy facilities. With a broad horsepower range and 230/460/575 V options, it fits a wide variety of machines—from small conveyors to high‑demand pumps—without multiple drives in stock. The door‑mounted control panel provides a graphical display for local control, while serial communications and external control connections enable seamless PLC or SCADA integration. Optional 12 or 3R enclosures expand protection for harsher environments and space‑constrained panel layouts. Overall, you gain install efficiency, reliable performance, and lower lifecycle costs.
Get a Quick Quote for a ABB 3AXD50000462469
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000462469?
Enquire Now
FAQs
The ACS580 Packaged Drive is supplied in a UL Type 1 enclosure with an optional 12 or 3R enclosure. It includes a door‑mounted disconnect, electronic motor overload protection, a local control panel, and provisions for external control connections and serial communications to simplify panel assembly.
It provides electronic motor overload protection and, depending on configuration, an input disconnect switch with fast‑acting fuses or an input circuit breaker. This protects motors during start‑up and load fluctuations and enables safe maintenance via padlockable OFF positions.
Ideal for OEM machinery, packaging lines, conveyors, pumps, and fans where space is limited and wiring needs to be simplified. The 230/460/575 V options and up to 350 hp make it suitable for a wide range of low‑voltage drive needs.
The ACS580 Packaged Drive is UL Type 1 (NEMA) standard with optional 12 or 3R enclosures. It includes safety features like a padlockable disconnect and motor overload protection to support compliant, safe installations.
By integrating drive, disconnect, protections, and local control in one enclosure, maintenance is simplified, commissioning is faster, and panel space is saved. Serial communications ease remote monitoring, reducing downtime and extending equipment life.
