ABB 3AXD50000532308 Motors & Drives - UL: Pld 400 HP 460 V
Part Number: 3AXD50000532308
Quick Summary
ABB ACQ580-04 wall-mounted LV AC drive for water and wastewater applications delivers precise pump control and energy efficiency. Operators often wrestle with inefficient flow, pump wear, and startup surges—this drive addresses those pain points with sensorless flow calculation, dry run protection, and soft-start ramps. Key certifications include UL listing for high-horsepower models and IP00/IP20 enclosure options, ensuring safe cabinet installation. By integrating an energy calculator and intuitive Drive Composer tools, this solution reduces operating costs while simplifying commissioning and ongoing maintenance, supporting reliable, compliant pumping infrastructure for utilities and treatment facilities. It also offers a Bluetooth-enabled control panel and PC-based configuration to accelerate field deployment.
Product Information
Extended Description

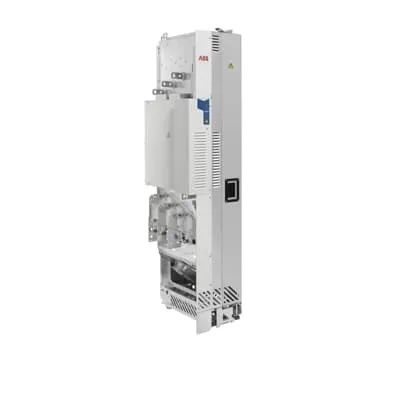

3AXD50000532308 ABB: The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Sensorless flow calculation enables the drive to estimate flow rates without external sensors, reducing wiring, parts, and maintenance. This translates to lower total cost of ownership and quicker troubleshooting for water and wastewater pumping. Ideal applications include lift stations and treatment plant inflow/outflow where sensor reliability is critical. Dry run protection detects a stalled or cavitating pump before damage occurs, protecting equipment and reducing unplanned downtime. Level control and multipump control manage tank levels and sequencing across multiple pumps, matching system demand and avoiding surge conditions. Soft pipe fill and rapid ramping reduce surge pressures during start-up, extending motor life and reducing energy spikes. The built-in energy calculator visualizes savings, helping engineers justify upgrades to management. The drive supports intuitive field configuration with Drive Composer, easy diagnostics, and an optional Bluetooth panel for service teams. Compatibility with ABB motors and scalable architecture support growing systems while simplifying maintenance and upgrades.
Get a Quick Quote for a ABB 3AXD50000532308
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000532308?
Enquire Now
FAQs
The ACQ580-04 is designed for wall-mounted cabinet installation with IP00 standard enclosure and IP20 options. It supports 460 V systems up to 483 A and 400 HP, reducing wiring complexity through sensorless control. Use the Hand-Off-Auto control panel for local operation and Drive Composer PC tool for commissioning, testing, and parameter optimization to ensure a smooth, compliant installation.
Key features include sensorless flow calculation, dry run protection, level and multipump control, soft pipe fill, quick ramps, and an energy calculator. Together, these capabilities deliver precise flow regulation, protect equipment, reduce surge stress, and quantify energy savings to justify modernization investments in pumping stations and treatment facilities.
Yes. The drive supports high-horsepower ABB motors (up to 400 HP, 460 V, 483 A) and can be deployed in multipump configurations with level control. Its scalable architecture, compatibility with Drive Composer, and optional Bluetooth panel simplify integration with current ABB pump systems and enable seamless upgrades across utility networks.
The ACQ580-04 drive is UL-listed for protection in demanding applications and offers IP00 standard enclosure with IP20 options for enhanced protection in cabinet installs. These certifications and ratings support safety, reliability, and compliance in municipal water and wastewater environments.
Expect reductions in energy consumption due to precise speed control and an energy calculator that quantifies savings over time. Dry run protection and level/multipump features lower downtime and wear, while Drive Composer and optional Bluetooth panel streamline commissioning, diagnostics, and field service, delivering faster ROI and lower ongoing maintenance costs.
