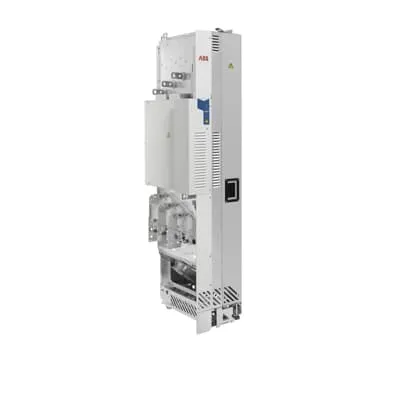

ABB 3AXD50000532810 LV AC Wall-Mounted Drive - IP00/IP20
Part Number: 3AXD50000532810
Quick Summary
ABB 3AXD50000532810 LV AC Wall-Mounted Drive is a pumping controller designed for water and wastewater systems. Engineers and procurement teams often struggle to deliver reliable flow while minimizing energy use and protecting pumps from dry-run events. The drive family includes UL-listed components and a standard IP00 enclosure, with IP20 options for harsher environments. It also emphasizes safety and ease of installation in cabinet settings. With built-in energy calculation, sensorless flow control, and multipump capabilities, it lowers operating costs while simplifying maintenance and asset management. Its intuitive Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth controller accelerate commissioning, testing, and remote diagnostics.
Product Information
Extended Description
3AXD50000532810 ABB: The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Sensorless flow calculation reduces instrumentation cost while delivering accurate flow estimation, enabling continuous optimization and energy-aware control for variable-demand water networks. This translates to lower energy consumption and extended pump life in municipal and industrial applications. Multipump control and level management provide coordinated operation across multiple pumps, improving system resilience and reducing start-stop cycles in wastewater lift stations. Dry run protection and soft pipe fill minimize mechanical wear and sudden load changes, delivering smoother starts and longer impeller life in demanding environments. Quick ramps and built-in pump cleaning functions support rapid commissioning and maintenance windows, reducing downtime and service costs. The Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth controller simplify setup, commissioning, and remote diagnostics, enhancing asset visibility and reducing on-site labor.
Get a Quick Quote for a ABB 3AXD50000532810
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000532810?
Enquire Now
FAQs
The drive supports common LV motor configurations used in water and wastewater systems and is certified for cabinet installation with IP00 as standard and IP20 as an option. It accepts 460 V supply and up to 573 A, aligning with typical municipal pump specifications. For retrofit projects, ensure enclosure space and cooling meet the drive’s thermal needs; the unit integrates with Hand-Off-Auto panels and Drive Composer for seamless deployment.
Key pump features include sensorless flow calculation, multipump control, and level control, enabling precise flow regulation without extensive instrumentation. These capabilities reduce energy waste, support variable-demand supply, and simplify multi-pump sequencing in lift stations, filtration systems, and distribution networks. The features are designed to improve efficiency while maintaining reliable, regulated pumping under dynamic conditions.
The drive is UL-listed and designed for cabinet installation with IP00 standard enclosure and IP20 option, addressing safety and environmental protection. Dry-run protection, soft-start ramps, and impeller-cleaning capabilities mitigate pump damage and wear. These protections support continuous operation in critical water and wastewater applications while meeting common regulatory and safety expectations for industrial automation.
The integrated energy calculator visualizes potential energy savings by adjusting pump speed and sequencing to match demand, supporting data-driven decisions for peak efficiency. Operators can compare scenarios, quantify reductions in kWh and costs, and justify improvements to energy management programs while maintaining required flow and pressure standards in water networks.
Commissioning leverages the Hand-Off-Auto panel for quick handover, the Drive Composer PC tool for configuration and diagnostics, and an optional Bluetooth controller for remote access. Start with motor and enclosure settings, enable sensorless control and pump-control sequences, then validate energy savings with the built-in calculator. Ongoing monitoring can be done via Drive Composer and the Bluetooth interface during operation.
