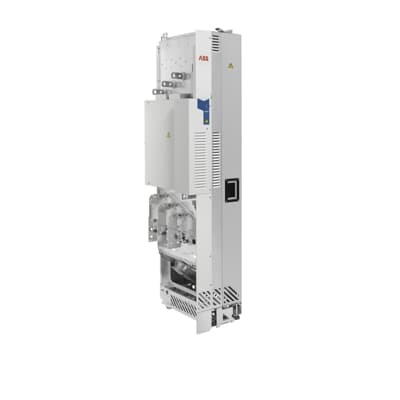

ABB 3AXD50000532827 AC Drive - IP20 Enclosure
Part Number: 3AXD50000532827
Quick Summary
The ABB 3AXD50000532827 LV AC wall-mounted drive provides precise pump control for water and wastewater applications. Operators often struggle with energy waste, unreliable dry-run protection, and lengthy commissioning across multi-pump networks. UL-listed with a 500 Hp rating at 460 V and 623 A, it offers IP00 standard enclosure and IP20 option for cabinet installations, helping align with plant safety and space constraints. Built-in pump features such as sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection reduce operational risk while improving efficiency. This drives measurable ROI through energy savings, longer pump life, and simplified maintenance, complementing Drive Composer configuration and an optional Bluetooth panel for field updates.
Product Information
Extended Description
3AXD50000532827 ABB: The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Built-in pump application features such as sensorless flow calculation, multipump control, and level control deliver precise, energy-efficient operation across variable pumping conditions. The business impact is lower capital and operating costs, since fewer external sensors and meters are required, and tuning time drops with intuitive configuration. In water treatment plants and lift stations, this translates to consistent head pressure and reduced headroom surprises during peak demand. Dry-run protection, soft pipe fill, and quick ramps protect pumps from damage, water hammer, and mechanical wear. The business impact is longer pump life, fewer unscheduled outages, and lower maintenance costs, enabling reliable service during grid fluctuations and seasonal demand swings. Impeller cleaning and the built-in energy calculator help sustain efficiency, with the calculator providing clear visibility into energy savings and ROI for ongoing optimization. Compatibility and installation advantages include Hand-Off-Auto control, Drive Composer PC tool, and an optional Bluetooth control panel, which streamline commissioning, remote updates, and field troubleshooting. The IP00 enclosure standard, with IP20 available, supports cabinet installations in varied plant layouts, reducing enclosure rework and facilitating safe, compliant installations in tight spaces.
Get a Quick Quote for a ABB 3AXD50000532827
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000532827?
Enquire Now
FAQs
This drive is designed for cabinet installation with IP00 standard enclosure and IP20 option to suit space and safety requirements. Plan for proper ventilation, proper clearance for service access, and compatible control wiring to integrate with Hand-Off-Auto panels and the Drive Composer PC tool. Ensure voltage, current, and horsepower ratings align with the pump load and that wiring complies with local electrical standards.
Its built-in pump features—sensorless flow calculation, multipump control, level control, dry run protection, soft pipe fill, and quick ramps—directly address typical wastewater and water pumping challenges. The UL-listed rating up to 500 Hp at 460 V with a 623 A current supports robust municipal service, while IP00/IP20 enclosure options support diverse installation environments.
Confirm voltage (460 V), current (623 A), and horsepower (up to 500 Hp) suitability for the target pump load. Check enclosure preference (IP00 standard or IP20 option) for your cabinet environment. Consider pump network needs such as multipump operation, sensorless flow needs, and whether you will utilize the Drive Composer PC tool or Bluetooth interface for configuration.
The unit is UL-listed and designed for cabinet installations with IP00 standard enclosure and the option for IP20. This combination supports safe integration in regulatory environments and provides flexibility for installation in compact or outdoor-adjacent pump rooms where enclosure protection levels matter.
The built-in energy calculator helps quantify energy savings from optimized pump control, while features like dry-run protection and soft-start ramps reduce wear, downtime, and maintenance costs. ROI is driven by lower energy consumption, extended pump life, and streamlined commissioning via Hand-Off-Auto, Drive Composer, and optional Bluetooth panel.
