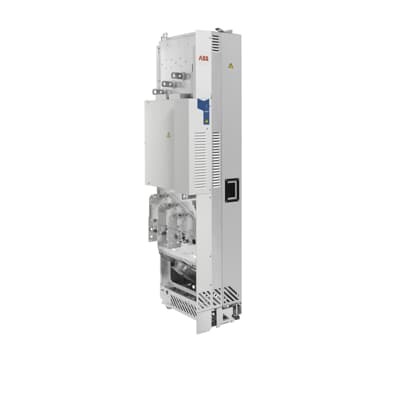

ABB 3AXD50000532834 LV AC Wall-Mounted Drive - UL 600 Hp
Part Number: 3AXD50000532834
Quick Summary
The ABB 3AXD50000532834 LV AC wall-mounted drive delivers efficient pump control for water and wastewater applications. Operators often struggle with energy waste, variable flow, and costly maintenance when deploying aging pump drives. This solution carries CE conformity, IP00/IP20 enclosure options, and UL listing for safety in critical water systems. Coupled with Drive Composer and built-in energy calculations, it enables measurable cost savings and straightforward integration with plant automation, while supporting 460 V mains and up to 705 A.
Product Information
Extended Description
3AXD50000532834 ABB: The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Feature: built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Business impact: reduces instrumentation needs, optimizes energy use, and minimizes pump wear, delivering reliable performance in municipal and industrial pumping setups. Application: municipal water treatment, wastewater lift stations, and industrial process pumping. Feature: quick ramps and impeller cleaning support, protecting pumps from surge and fouling. Business impact: lowers start-up stress and maintenance costs, increasing uptime in critical duty cycles. Application: long-run operation in dry or fouling-prone environments. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth panel. Business impact: faster commissioning, easier diagnostics, and remote supervision. Application: field service, commissioning in new plants, and remote site monitoring. Feature: built-in energy calculator visualizing energy savings. Business impact: enables data-driven operating costs and return on investment analysis. Application: energy-management programs for water utilities and industrial plants. Feature: IP00 standard enclosure with IP20 option for cabinet installation. Business impact: flexible installation in control rooms or on-site cabinets, reducing enclosure costs. Application: compact plant layouts and retrofit projects.
Get a Quick Quote for a ABB 3AXD50000532834
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000532834?
Enquire Now
FAQs
For installation, plan cabinet layout with IP00 enclosure as standard or IP20 for higher protection. Ensure 460 V mains compatibility and adequate clearance for heat dissipation. Use Hand-Off-Auto for on-site control, and connect to the Drive Composer PC tool for fault diagnostics and commissioning, leveraging the sensorless flow and dry-run features to protect pumps.
The module includes sensorless flow calculation, multipump control, level control, soft pipe fill, dry-run protection, and rapid ramping. These capabilities translate into precise pump curve control, reduced energy consumption, and extended pump life, especially in variable-demand wastewater and water distribution systems, with energy visibility via the built-in calculator.
Yes. The drive supports multipump control, level control, and quick ramp changes, enabling coordinated sequencing of multiple pumps. This is ideal for water treatment lines requiring staggered pump operation, reduced peak demand, and reliable back-up configurations, while maintaining protection against dry-run and surge events.
The drive is UL listed for safety in critical systems, and it offers IP00 enclosure as standard with an IP20 enclosure option for cabinet installations. CE conformity is supported, helping ensure compliance in many global markets and predictable performance in water and wastewater environments.
Ongoing benefits include reduced energy spend from the energy calculator, longer pump life due to dry-run protection and soft-start ramping, and lower maintenance through sensorless control and diagnostics via Drive Composer. The up-front investment is typically recovered through energy savings, reduced downtime, and easier integration with SCADA systems.
