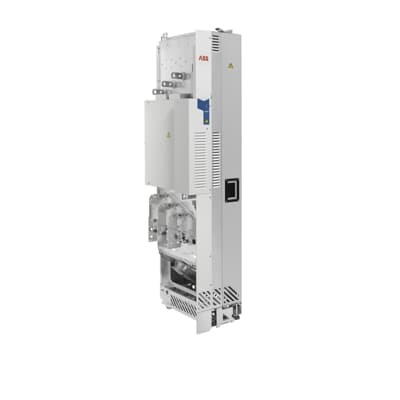

ABB 3AXD50000532841 LV AC Drive - 460 V UL-listed
Part Number: 3AXD50000532841
Quick Summary
ABB 3AXD50000532841 is a LV AC wall mounted drive for water and wastewater pumping applications. Operators face energy waste, pump wear, and downtime when control systems aren’t tuned for variable flow. This drive combines UL-listed safety, IP00/IP20 enclosure options, and pump-focused features like sensorless flow calculation and dry run protection. Designed for reliable, compliant pumping solutions, it supports energy-efficient automation with Drive Composer and hand-off-auto operation, delivering lower life-cycle cost and easier maintenance. Ideal for water treatment, distribution, and wastewater facilities seeking predictable performance and reduced energy spend. Its compact footprint also simplifies retrofits and new installations across plant floors.
Product Information
Extended Description
3AXD50000532841 ABB: The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Feature: Sensorless flow calculation provides accurate flow data without additional instrumentation. Business impact: Reduces capital expenditure and maintenance costs while improving process visibility. Application: Suitable for variable-speed control in water distribution networks and wastewater pumping stations. Feature: Multipump control with level control and soft pipe fill. Business impact: Enables coordinated pumping, reduces surge risks, and minimizes energy waste. Application: Multistage pumping in lift stations and treatment facilities where simultaneous pump operation is common. Feature: Dry run protection and quick ramps. Business impact: Prevents dry-running damage and reduces mechanical wear, extending pump life and lowering maintenance frequency. Application: Critical in silent-cutover operations during start/stop cycles in low-flow periods. Feature: Built-in energy calculator and efficient control logic. Business impact: Quantifies energy savings, supports ROI analysis, and aids compliance with energy-use targets. Application: Plant-wide optimization projects and new-builds focused on lifecycle cost reduction. Feature: Intuitive Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business impact: Accelerates commissioning, simplifies ongoing tuning, and enables remote diagnostics. Application: Field service and commissioning teams working in water/wastewater facilities. Feature: IP00 standard enclosure with IP20 option. Business impact: Facilitates cabinet installations with flexible protection levels, reducing enclosure-related barriers. Application: Retrofit projects and new installations in plant rooms with space constraints. Insights: In wastewater environments, compact drives with integrated pump features deliver faster mean-time-to-respond capabilities and lower total cost of ownership across asset fleets.
Get a Quick Quote for a ABB 3AXD50000532841
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000532841?
Enquire Now
FAQs
The drive ships as a wall-mounted LV AC module suitable for cabinet installation. It supports standard IP00 enclosures, with an IP20 enclosure option available for higher protection in plant environments. Compatibility with Hand-Off-Auto panels and the Drive Composer PC tool simplifies commissioning and integration into existing control architectures.
Key specs include 700 Hp capacity, 807 A current, and 460 V operation. Sensorless flow calculation eliminates the need for external flow meters in many pumping scenarios, delivering accurate flow estimates, reduced instrumentation costs, and improved control performance for variable-speed pumping.
Yes. The ACQ580-04 module supports multipump control and level control, enabling coordinated operation across multiple pumps. This reduces electrical noise, minimizes flow fluctuations, and improves overall system efficiency in wastewater lift stations and water distribution systems.
The drive is UL-listed for safety compliance and offers IP-rated enclosure options (IP00 standard and IP20 available). It includes pump-focused protections such as dry run protection and an energy calculator to support energy-management initiatives and regulatory compliance where applicable.
Facilities typically see reduced maintenance due to dry run protection and soft-start features, plus measurable energy savings from the integrated energy calculator. The intuitive panels and Drive Composer tool shorten commissioning time, lowering total cost of ownership and accelerating a favorable return on investment.
