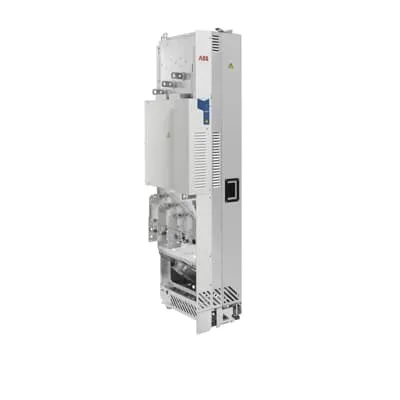

ABB 3AXD50000532858 LV AC wall-mounted drive - UL Listed
Part Number: 3AXD50000532858
Quick Summary
ABB 3AXD50000532858 LV AC wall-mounted drive is designed for reliable pump control in water and wastewater applications. It helps operators reduce energy waste and unplanned downtime by integrating pump-focused features that optimize flow and protect equipment. The solution ships UL Listed for electrical safety and supports IP00 enclosure with an IP20 option, aligning with CE readiness for global projects. Designed for cabinet installations, its compact module and intuitive tooling streamline installation, commissioning, and ongoing maintenance, delivering measurable cost savings and improved process reliability. Together with the embedded energy calculator, it provides transparent ROI tracking for operators and maintenance teams.
Product Information
Extended Description
3AXD50000532858 ABB: The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Sensorless flow calculation and multipump control enable precise pump sequencing and reduced energy consumption. By matching pump speed to real demand, facilities lower electricity costs while extending motor life. This is especially valuable in municipal water stations and wastewater lift stations where demand fluctuates throughout the day. Soft pipe fill and level control, paired with dry-run protection, guard against water hammer and dry running, protecting pumps and pipes. The result is fewer unexpected shutdowns and longer component life, with maintenance teams spending less time on stops and starts in treatment plants and pumping stations. An embedded energy calculator visuals energy savings opportunities, supporting ROI analysis and budget approvals. Quick ramps improve start-up performance, reducing pressure shocks and accelerating system readiness in new installs or upgrades for treatment facilities. Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel simplify commissioning and remote diagnostics. Operators can calibrate settings, monitor performance, and diagnose issues from a control room, cutting on-site visits and accelerating project timelines. IP00 enclosure is standard, with IP20 option for cabinet installations, offering flexible deployment in compact spaces. This compatibility with existing switchgear and control panels reduces integration effort and ensures safe operation within plant cabinets. This compact, robust drive module supports efficient space utilization and easier maintenance in harsh plant environments. Its built-in application features reduce external hardware, while compatibility with standard ABB motor systems helps maintain consistent performance across diverse pump stations.
Get a Quick Quote for a ABB 3AXD50000532858
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000532858?
Enquire Now
FAQs
Start by confirming cabinet enclosure: IP00 standard with IP20 option if needed, and verify the 460 V supply and 807 A rating match your motor. Use Drive Composer for initial parameterization, connect standard motor leads, and configure pump parameters such as level control and multipump sequencing. Employ the Hand-Off-Auto panel for on-site switching and run a step-by-step commissioning plan to verify protection features (dry-run, overcurrent, and short-circuit protection) before full-load testing.
Sensorless flow calculation provides pump flow estimation without external sensors, reducing hardware cost and potential sensor failures. This improves control accuracy, enables smoother start/stop transitions, and supports energy-efficient operations by aligning pump speed to actual demand. In multi-pump or variable-demand environments, sensorless estimation helps maintain stable head pressure and reliable level control.
Yes. The ACQ580-04 driven module supports multipump control, enabling coordinated sequencing and load sharing across multiple pumps. This reduces peak electrical demand, minimizes wear from start/stop cycling, and improves system resilience during demand fluctuations typical of treatment and distribution systems. Pair with level sensing and quick ramp features to optimize transitions between pumps.
The drive is UL Listed for electrical safety and offers IP00 standard with an optional IP20 enclosure for cabinet installations, enabling flexible integration in plant cabinets. While primarily designed for UL compliance and IP-rated protection, it’s prudent to verify CE readiness or local regulatory requirements for your region during project planning.
The built-in energy calculator helps quantify potential energy savings, supporting ROI projections and budget approvals. Regular maintenance benefits from the Drive Composer PC tool and remote diagnostics via optional Bluetooth, reducing on-site visits. By lowering energy use, avoiding dry-run damage, and extending motor life, operators can achieve a favorable total cost of ownership over the asset life.
