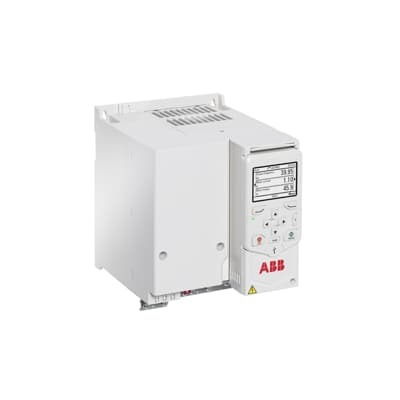

ABB ACH480 LV AC Drive Module for HVAC - 4 kW
Part Number: 3AXD50000555895
Quick Summary
The ABB ACH480 HVAC drive powers LV AC equipment, delivering precise control for fans, pumps, and compressors. Panel builders and OEMs often contend with lengthy setup times and complex commissioning. Designed to meet CE compliance with robust protection in HVAC panels and typical IP-rated enclosures, the ACH480 also supports SIL-ready configurations where required. This drive delivers tangible business value by reducing installation time, enabling energy-efficient operation, and enabling remote commissioning via Bluetooth in modern HVAC installations.
Product Information
Extended Description
3AXD50000555895 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature → Business Impact → Application: Cabinet-optimized ACH480 design streamlines installation in HVAC panels, reducing wiring complexity and enclosure footprint while accelerating time-to-commission. Benefit: Faster project timelines and lower labor costs for panel builders and OEMs; Application: Air-handling units (AHUs), rooftop units, and variable-air-volume systems. Feature → Business Impact → Application: Built-in HVAC functionality allows control of fans, pumps, and compressors with energy-efficient modulation, delivering precise speed and torque management. Benefit: Lower energy consumption, reduced wear, and quieter operation in commercial buildings; Application: AHUs and fans in data centers, hospitals, and campuses. Feature → Business Impact → Application: HVAC-specific primary settings menu with intuitive help assistants simplifies startup, commissioning, and fault diagnosis. Benefit: Reduced commissioning time, fewer field service visits, and improved first-run performance; Application: OEM panel integration and field deployments. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring without on-site visits. Benefit: Faster commissioning cycles, easier maintenance, and improved asset visibility; Application: Remote sites, multiple units, and OEM deployments. This approach also addresses objections about upfront cost by highlighting long-term savings, rapid ROI, and scalable integration in modern HVAC ecosystems. Long-tail keywords addressed include HVAC drive module for AHUs, LV AC drive for fans, energy-efficient HVAC control, Bluetooth-enabled drive, and panel-ready HVAC drive.
Get a Quick Quote for a ABB 3AXD50000555895
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000555895?
Enquire Now
FAQs
The ACH480 is a cabinet-optimized LV AC drive designed for HVAC equipment such as fans and pumps. It wires into standard panel architectures with compact footprint, uses HVAC-specific primary settings, and integrates with existing ABB or third-party motor controls. This simplifies panel design, reduces wiring complexity, and accelerates commissioning by providing clear startup guidance and built-in diagnostics.
Key specifications include a 4 kW power rating, 17.5 A current, and a 200 V input. This combination supports standard fan and pump applications in HVAC systems, enabling smooth speed control and reliable performance in both normal and mission-critical environments. The module is designed to fit cabinet-based installations with straightforward wiring and control integration.
Yes. The ACH480 drive is explicitly built to control HVAC equipment such as fans, pumps, and compressors in air-handling units and other commercial installations. Its HVAC-focused features, intuitive control panel, and the option for Bluetooth-enabled commissioning make it well-suited for AHUs in offices, hospitals, and data centers while delivering energy-efficient performance.
HVAC drives from ABB typically conform to CE safety and electromagnetic compatibility requirements, with robust enclosure protection appropriate for panel installations. In practice, many installations also require IP-rated enclosures and considerations for SIL capabilities where safety-related functions are involved. Check your regional regulations and customer specifications to confirm the exact certification set for your project.
ROI benefits arise from reduced commissioning time, lower energy consumption through precise motor control, and extended equipment life due to smoother operation. Maintenance is simplified by built-in diagnostics and intuitive settings, decreasing field service time. Remote commissioning with Bluetooth further lowers on-site visits, delivering faster deployments and ongoing operational visibility.
