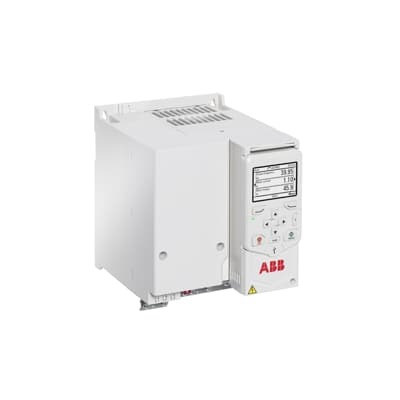

ABB 3AXD50000555901 LV AC drive module - IEC 5.5 kW, 25 A, 200 V
Part Number: 3AXD50000555901
Quick Summary
The ABB ACH480 LV AC drive module for HVAC systems delivers precise fan, pump, and compressor control. Panel builders and OEMs often confront lengthy wiring, commissioning delays, and integration headaches that slow project timelines. This cabinet-optimized drive includes HVAC-specific settings, an intuitive interface, and optional Bluetooth for remote commissioning, reducing startup time and risk. Designed to meet key standards, it supports CE-compliant controls and is suitable for integration into robust, safe cabinet solutions. By streamlining setup and delivering energy-efficient operation, this HVAC drive simplifies procurement and accelerates time-to-value for OEMs and panel builders alike.
Product Information
Extended Description
3AXD50000555901 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: Cabinet-optimized design for HVAC panels → Business Impact: Reduces panel footprint and simplifies wiring, accelerating installation and commissioning times in new builds and retrofits. Application: Ideal for HVAC panels, air handling units, and packaged rooftop solutions. Long-tail keywords include cabinet-ready HVAC drive, HVAC drive module for panels, and panel integration for fans and pumps. Feature: HVAC-specific control capabilities → Business Impact: Delivers smooth, energy-efficient control of fans, pumps, and compressors, lowering operating costs and improving system stability in fluctuating HVAC loads. Application: Air handling units, chiller systems, and variable-volume HVAC networks. Feature: Intuitive control panel with HVAC primary settings → Business Impact: Faster startup, fewer commissioning errors, and simpler operator training, reducing project risk. Application: OEM panel commissioning and field service workflows. Feature: Optional Bluetooth remote commissioning → Business Impact: Enables commissioning, monitoring, and diagnostics from a distance, shortening on-site visits and speeding maintenance cycles. Application: Remote HVAC drive management for OEMs and service providers. Feature: Compatibility for OEMs and panel builders → Business Impact: Streamlines procurement and reduces engineering time with plug-and-play integration and pre-wiring options. Application: Factory floor installation and commissioning in commercial and industrial HVAC projects. Feature: Safety and compliance alignment → Business Impact: Supports CE compliance and safety architecture expectations, reducing regulatory risk in regional installations. Application: European projects and multinational facilities seeking standardization. Note: All features support long-term ROI through reduced energy use, maintenance costs, and faster project delivery.
Get a Quick Quote for a ABB 3AXD50000555901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000555901?
Enquire Now
FAQs
Yes. The ACH480-based module is designed for cabinet-integrated HVAC applications and is compatible with standard ABB drive ecosystems. It supports HVAC-specific controls, is easy to wire into common panel architectures, and integrates with OEM panel builders for rapid deployment in air handling units, fans, and pumps. For best results, follow ABB installation guidelines and use compatible cabling harnesses to minimize wiring errors.
The module targets 5.5 kW with a 25 A current rating and 200 V input, aligning with IEC-driven HVAC applications. It provides precise VFD-based motor control for variable-speed operation of fans, pumps, and compressors, enabling energy-efficient performance across varying load conditions. Users should verify motor compatibility (induction motors within rated torque) and ensure proper thermal management in the cabinet.
Absolutely. The cabinet-optimized ACH480 module is purpose-built for HVAC deployments, including air handling units, rooftop units, and OEM panel solutions. Its HVAC-focused control panel and settings streamline commissioning and operation, while its compact footprint fits space-constrained control cabinets. For best outcomes, coordinate with panel builders on wiring schematics and addressable sensor inputs required by the HVAC application.
The ACH480-based module is designed to meet widely adopted HVAC and electrical standards, with CE compatibility for European applications and safety features aligned with industry practices. When selecting for global projects, verify local compliance requirements and enclosure protection needs, and consult ABB documentation for certification specifics related to your region and cabinet environment.
Routine maintenance for HVAC drives focuses on sensor connections, wiring integrity, and software updates. The ACH480 module’s remote commissioning capability reduces service visits, accelerating issue resolution. ROI is driven by lower energy consumption due to precise speed control, reduced wiring and installation time, and simplified startup, translating to shorter project durations and lower labor costs.
