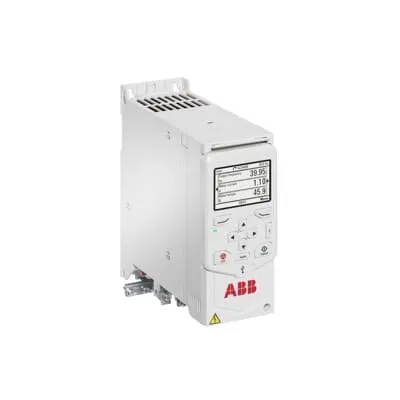

ABB ACH480-04-03A7-1 LV AC drive module - HVAC
Part Number: 3AXD50000646388
Quick Summary
LV AC drive module for HVAC control, ABB ACH480-04-03A7-1 optimizes fans, pumps, and compressors in commercial and industrial spaces. Projects often stall during installation and commissioning due to complex wiring and setup in panel builds, leading to delays and increased labor costs. Key certifications and standards to consider include CE conformity for electrical safety, IP-rated enclosures for harsh environments, and SIL-ready concepts for safety-critical systems. With a cabinet-optimized design and an HVAC-focused control panel, you gain faster startup, easier commissioning, and predictable energy performance—delivering meaningful value for OEMs, panel builders, and end users seeking reliable, scalable drive technology.
Product Information
Extended Description
3AXD50000646388 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: HVAC-optimized control with built-in fan, pump, and compressor management. Business impact: precise motor control and energy efficiency reduce operating costs and refrigerant cycling, improving overall system COP. Application: air handling units and packaged HVAC systems in commercial and industrial facilities. Feature: Cabinet-optimized design that simplifies installation and wiring. Business impact: shorter panel assembly, lower labor costs, and easier field service, accelerating project timelines. Application: OEM panel builds and contractor installations where space and time are critical. Feature: HVAC primary settings menu with help assistants. Business impact: faster commissioning, fewer setup errors, and consistent startup sequences across multiple sites. Application: commissioning teams and service technicians handling large-scale HVAC deployments. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Business impact: remote access reduces site visits, enables proactive maintenance, and improves fault diagnosis. Application: remote sites and building management integrations. Feature: Compatibility with 0.55 kW, 200 V, 3.7 A motor loads. Business impact: aligns with common HVAC motor specs, minimizing rewiring and adaptation needs. Application: fans, pumps, and small compressors in AHUs and rooftop units. Long-tail keywords integrated: ACH480 HVAC drive, LV AC drive module, HVAC control panel drive, cabinet-optimized HVAC drive, Bluetooth HVAC drive, panel builder ABB drives, 0.55 kW HVAC drive.
Get a Quick Quote for a ABB 3AXD50000646388
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000646388?
Enquire Now
FAQs
Follow ABB installation guidelines for cabinet mounting, wire sizing, and motor connection. Ensure supply voltage is 200 V and motor current is within 3.7 A rating; use HVAC-specific parameter sets to simplify startup and commissioning.
Key specs include 0.55 kW rated power, 200 V operating voltage, and 3.7 A current rating, model ACH480-04-03A7-1, designed for HVAC fans, pumps, and compressors.
Yes. The ACH480 is specifically positioned for HVAC applications, including AHUs, due to its cabinet-optimized design and HVAC-focused control features that support precise fan and pump control.
Key considerations include CE conformity for electrical safety, appropriate IP enclosure ratings for your environment, and SIL-related safety considerations for safety-critical HVAC sequences; always verify exact model certifications in the datasheet for your region.
Expect faster commissioning, reduced wiring and panel time, and energy savings from optimized motor control, which translate into lower lifecycle costs and improved system reliability over time.
