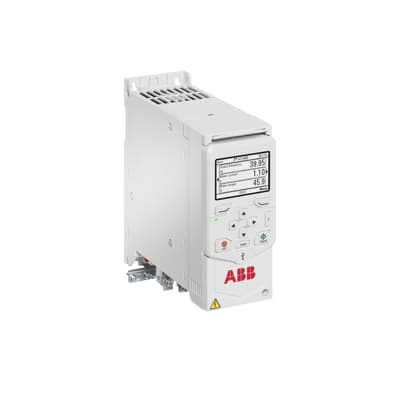

ABB ACH480-04-02A4-2 LV AC drive module - Bluetooth-enabled
Part Number: 3AXD50000646944
Quick Summary
The ABB ACH480-04-02A4-2 LV AC drive module provides precise speed control for HVAC fans, pumps, and compressors. Installing HVAC drives can be time-consuming, and cabling complexity often slows projects; this cabinet-optimized module reduces wiring effort and speeds commissioning with an intuitive HVAC-specific settings menu. It supports CE compliance and is designed for robust operation in panel environments, with IP-rated protection suitable for typical HVAC installations. For OEMs and panel builders, the combination of compact installation, built-in controls, and remote readiness accelerates project timelines. The Bluetooth-enabled option adds remote commissioning and monitoring, delivering measurable energy savings and simplified maintenance in commercial and industrial HVAC systems.
Product Information
Extended Description
3AXD50000646944 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: cabinet-optimized HVAC drive with complete HVAC functionality. Business impact: reduces installation time and wiring complexity, accelerates commissioning, and enables precise control of ventilation and conditioning equipment. Application: air handling units and building management HVAC networks. Feature: HVAC-specific primary settings menu and help assistants. Business impact: faster startup, fewer configuration errors, and smoother handoffs to operations teams. Application: OEM panel integration and field deployment. Feature: optional Bluetooth capability. Business impact: remote commissioning and monitoring, reduced site visits, and proactive maintenance. Application: distributed HVAC drives across campuses or facilities. Feature: specified Pn 0.37 kW, 2.4 A, 200 V. Business impact: fits common HVAC loads in mid-size systems, enabling compact enclosures and cost-effective installations. Application: fans, pumps, and compressors in commercial and industrial HVAC. Feature: panel- and OEM-friendly design. Business impact: eases integration with standard electrical cabinets, cutting engineering hours and simplifying documentation. Application: building automation projects and system retrofits. Feature: reliability for mission-critical operation. Business impact: stable operation during peak loads and during transition periods, reducing downtime. Application: critical ventilation and climate control in data centers and hospitals.
Get a Quick Quote for a ABB 3AXD50000646944
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000646944?
Enquire Now
FAQs
The ACH480-04-02A4-2 is designed for cabinet mounting in 200 V HVAC systems. It supports HVAC-driven loads such as fans and pumps, with a compact footprint suitable for standard panels. The device offers an HVAC-focused control interface and an intuitive setup process to minimize wiring, reduce panel complexity, and speed field installation without sacrificing reliability.
Key specifications include nominal power of 0.37 kW, current rating of 2.4 A, and a supply voltage of 200 V. These values position the ACH480-04-02A4-2 for mid-size HVAC applications, delivering precise speed control for ventilation fans, pumps, and compressors while maintaining safe, energy-efficient operation.
Yes. The ACH480-04-02A4-2 is purpose-built for HVAC applications, including air handling units. Its cabinet-optimized design, HVAC-specific settings, and compatibility with building automation systems enable reliable, scalable control of multiple AHU components, helping to maintain indoor air quality and comfort while reducing energy consumption.
This ABB drive is CE-certified for European compliance and designed for protected panel environments, aligning with common regulatory requirements in HVAC installations. While specific SIL or IP ratings are not listed here, the device emphasizes safety-conscious enclosure integration and robust operation within HVAC cabinets.
Projects using the ACH480-04-02A4-2 can realize faster commissioning due to HVAC-focused menus, remote commissioning via Bluetooth, and reduced on-site service visits. The combination of energy-efficient speed control and easier OEM integration translates to lower lifecycle costs, improved uptime in mission-critical spaces, and a shorter payback period through energy savings.
