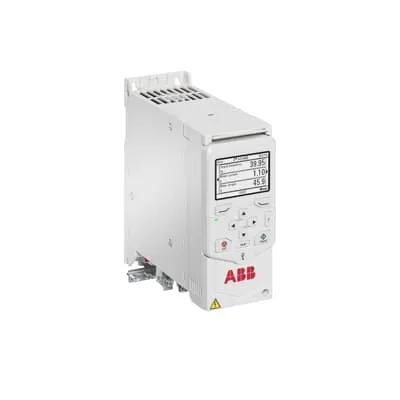

ABB 3AXD50000646999 LVAC Drive Module - 2.2 kW
Part Number: 3AXD50000646999
Quick Summary
ABB ACH480 LVAC drive module provides precise speed control for HVAC fans, pumps, and compressors. Installers often struggle with long commissioning times and complex parameter setups, and this drive simplifies startup with an HVAC-specific primary settings menu and help assistants. The device is CE certified, supports IP-rated enclosure protection options, and adheres to IEC safety standards, with optional Bluetooth for remote commissioning. By combining cabinet-optimized hardware with user-friendly configuration, it reduces installation costs and improves energy efficiency for OEMs and panel builders.
Product Information
Extended Description
3AXD50000646999 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: cabinet-optimized ACH480 drive with HVAC functionality. Business impact: minimizes cabinet footprint and wiring complexity while delivering reliable HVAC control, speeding up panel assembly and reducing material costs. Application: ideal for building automation lines, air handling units, and OEM equipment where space and installation time matter. Feature: built-in HVAC control features for fans, pumps, and compressors. Business impact: enables smooth, energy-efficient operation and reduces wear on mechanicals by maintaining stable speeds and ramp profiles. Application: control of HVAC fans, pumps, and compressors in commercial buildings, hospitals, and data centers. Feature: HVAC-specific control panel with primary settings menu and help assistants. Business impact: accelerates configuration, reduces human error, and speeds up commissioning cycles. Application: panel builders and system integrators deploying ACH480 in new builds or retrofits. Feature: optional Bluetooth capability for commissioning and monitoring. Business impact: enables remote setup, diagnostics, and performance tracking, cutting on-site visits and maintenance overhead. Application: remote commissioning for multi-site HVAC installations and OEM equipment. Feature: compatibility with 200 V supply and 2.2 kW rating (9.8 A). Business impact: aligns with common HVAC loads, simplifying procurement and reducing conversion steps. Application: retrofit projects, new panels, and OEM systems where a compact, high-efficiency drive fits existing electrical infrastructure. Industry context and credibility: the ACH480 family is positioned for panel builders and OEMs seeking rapid deployment, predictable performance, and energy savings across commercial HVAC applications.
Get a Quick Quote for a ABB 3AXD50000646999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000646999?
Enquire Now
FAQs
To install the ACH480 LV AC drive module, mount the unit in a standard HVAC control panel, connect the 200 V supply, and wire the output to the driven motor (2.2 kW, 9.8 A). Use the HVAC-specific primary settings menu for initial parameterization, then enable Bluetooth if remote commissioning is required. Ensure proper enclosure protection and grounding per IEC guidelines.
Key specs include a 2.2 kW rated power, 9.8 A current draw, and a 200 V supply. The ACH480 is designed for HVAC loads such as fans, pumps, and compressors, delivering smooth speed control and energy efficiency. Verify motor type compatibility, wiring schema, and protective functions to match system requirements, and use the built‑in diagnostics to monitor current, voltage, and fault conditions.
Yes. The ACH480 LV AC drive module is purpose-built for HVAC, including air handling units. It provides cabinet‑optimized control, HVAC‑specific settings, and reliable speed regulation for fans and pumps, enabling energy savings and stable AHU performance in commercial buildings, hospitals, and data centers. For OEM integrations, its compact footprint supports tighter panel designs.
The device is CE-certified for European compliance and adheres to IEC safety standards. It supports IP-rated cabinet options for enhanced protection in panel environments and aligns with HVAC and electrical safety best practices, ensuring reliable operation within regulated installations.
The ACH480 reduces commissioning time through HVAC‑specific menus and help assistants, cutting labor costs. Remote commissioning via Bluetooth lowers on-site visits, while energy-efficient speed control lowers operating costs over the life of HVAC systems. For OEMs, faster time-to-market and consistent performance translate to measurable ROI.
