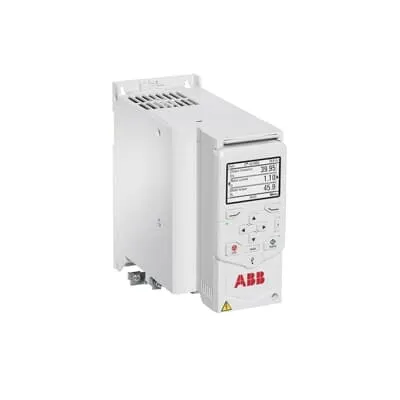

ABB 3AXD50000647002 LV AC Drive Module - 3 kW, 200 V
Part Number: 3AXD50000647002
Quick Summary
LV AC drive module for HVAC applications, enabling precise fan and pump control. Engineers often grapple with lengthy commissioning, wiring complexity, and inconsistent system performance across loads. Typical HVAC drives carry CE compliance and IP-rated enclosures, with SIL-enabled options for safety-critical environments. The ACH480-04-12A2-2 integration offers cabinet-optimized HVAC functionality and an intuitive control panel, dramatically reducing startup time. For panel builders and OEMs, this module translates into faster installation, easier maintenance, and reliable operation across mission-critical scenarios.
Product Information
Extended Description
3AXD50000647002 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature → Business Impact → Application: Cabinet-optimized ACH480 drive with built-in HVAC functionality reduces panel space, wiring complexity, and installation time, enabling reliable control of fans, pumps, and compressors in air-handling units. This translates to lower labor costs and faster project delivery for OEMs and module builders. Application: suitable for HVAC equipment where compact cabinet layouts and straightforward commissioning are priorities. Feature → Business Impact → Application: Intuitive HVAC primary settings menu and help assistants expedite startup and commissioning, lowering risk of configuration errors and enabling technicians to deploy systems with confidence. Application: ideal for panel builders integrating HVAC drives into standard control cabinets. Feature → Business Impact → Application: Optional Bluetooth capability for remote commissioning and monitoring eliminates frequent site visits, enabling quick diagnostics and ongoing performance tuning. Application: beneficial for remote facilities, distributed HVAC networks, and mission-critical installations. Feature → Business Impact → Application: Compatibility with fans, pumps, and compressors across air-handling units ensures smooth operation under normal and adverse conditions, improving system reliability. Application: supports OEM integration and turnkey HVAC solutions. Feature → Business Impact → Application: Energy-efficient operation reduces running costs and thermal stress on electrical infrastructure, delivering measurable ROI over the life of the installation. Application: aligns with corporate sustainability goals and maintenance budgeting. Feature → Business Impact → Application: Cabinet-builder and OEM-friendly installation advantages, including standardized wiring schemes and reduced panel depth, streamline procurement and commissioning. Application: accelerates project timelines and minimizes on-site risk.
Get a Quick Quote for a ABB 3AXD50000647002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000647002?
Enquire Now
FAQs
Yes. The ABB LV AC drive module is designed for cabinet integration in HVAC control panels, offering compact dimensions and a layout that simplifies wiring. Its cabinet-optimized architecture supports common panel standards and OEM enclosure configurations, reducing installation time and improving serviceability.
The module targets a 3 kW drive rating with a current draw of 12.2 A at 200 V. These specifications fit typical HVAC fan, pump, and compressor applications, delivering reliable motor control while keeping wiring and protection requirements aligned with standard industry practices.
Yes. An optional Bluetooth capability enables commissioning and monitoring from a distance, reducing on-site visits and accelerating troubleshooting and parameter tuning for both new installations and retrofit projects.
The cabinet-optimized design, HVAC-specific control features, and intuitive startup menus shorten installation and commissioning times. This translates to faster project delivery, easier maintenance, and more predictable performance across varied HVAC loads for OEMs and system integrators.
Energy-efficient operation reduces running costs, while remote commissioning minimizes field service needs. The combination of easier installation, fewer commissioning errors, and reliable operation supports a faster payback period and lower total cost of ownership for HVAC control projects.
